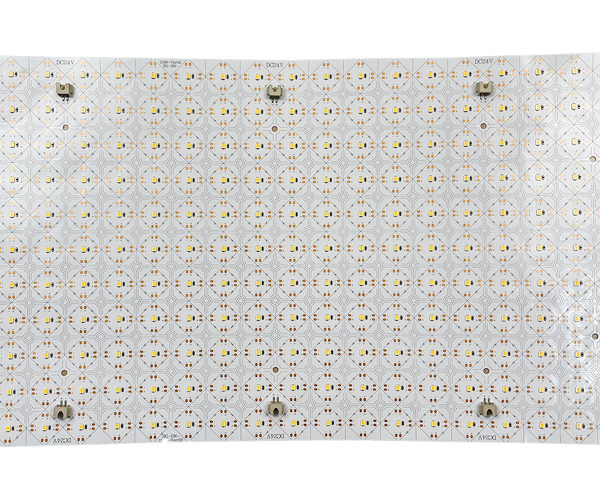

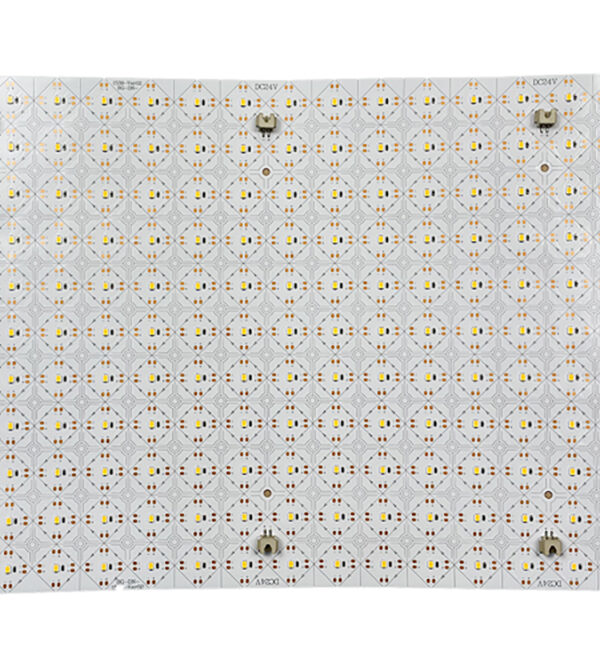

LED Panel Sheet 242Leds DC 24V 28W IP20 2835 490*245mm Dimension

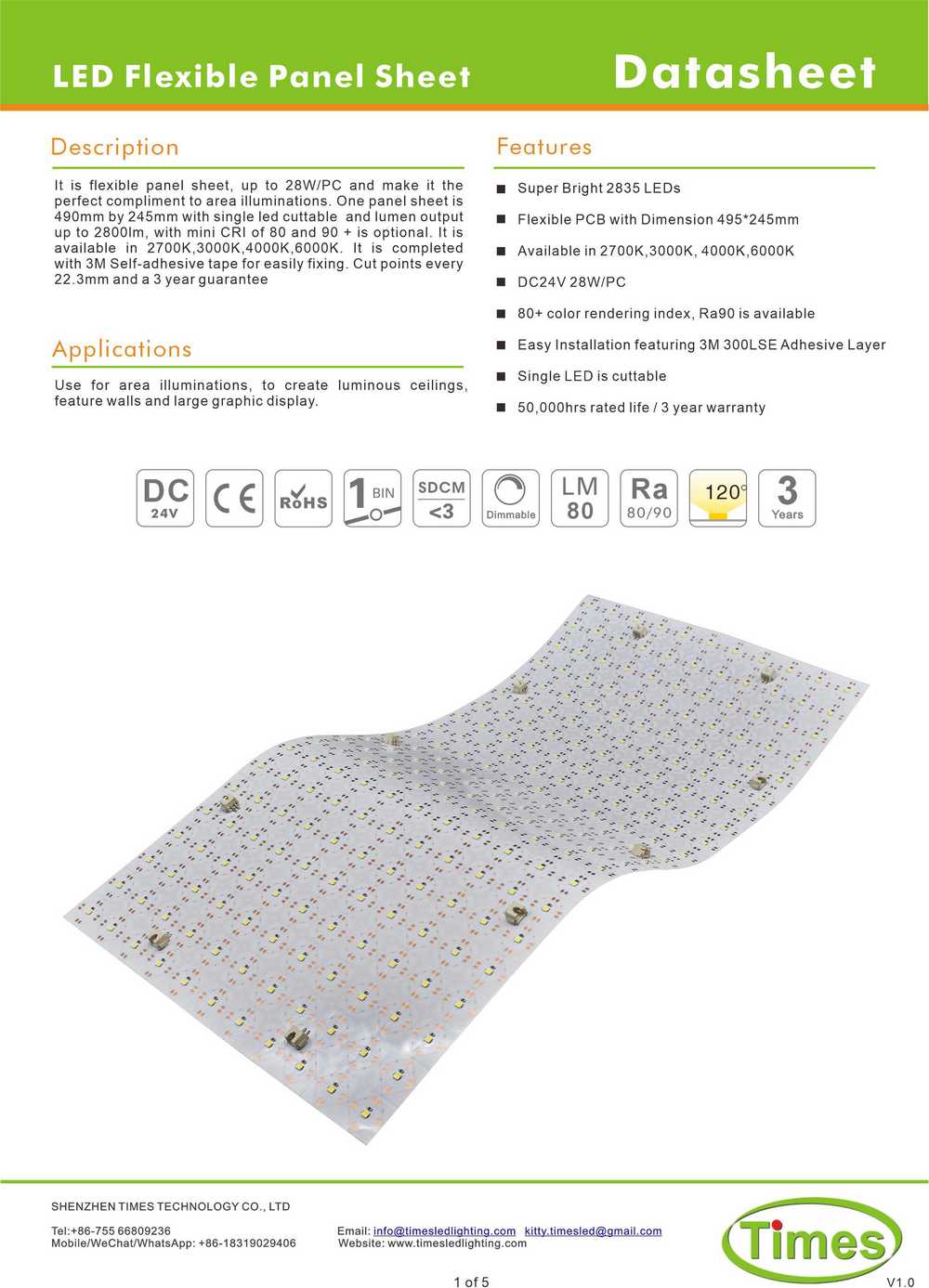

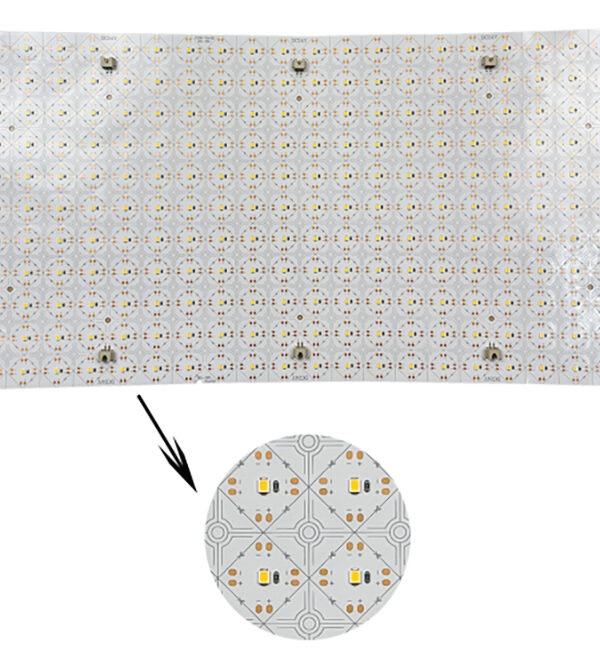

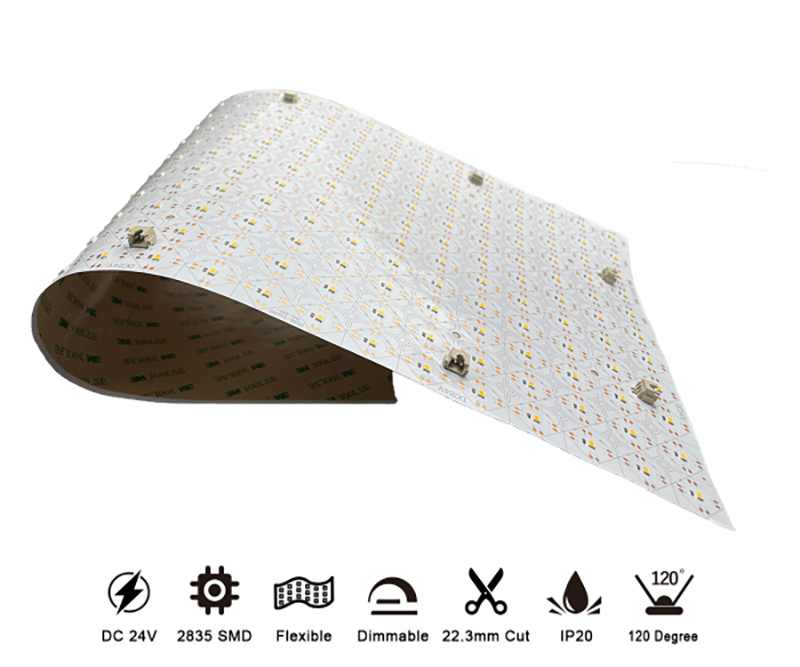

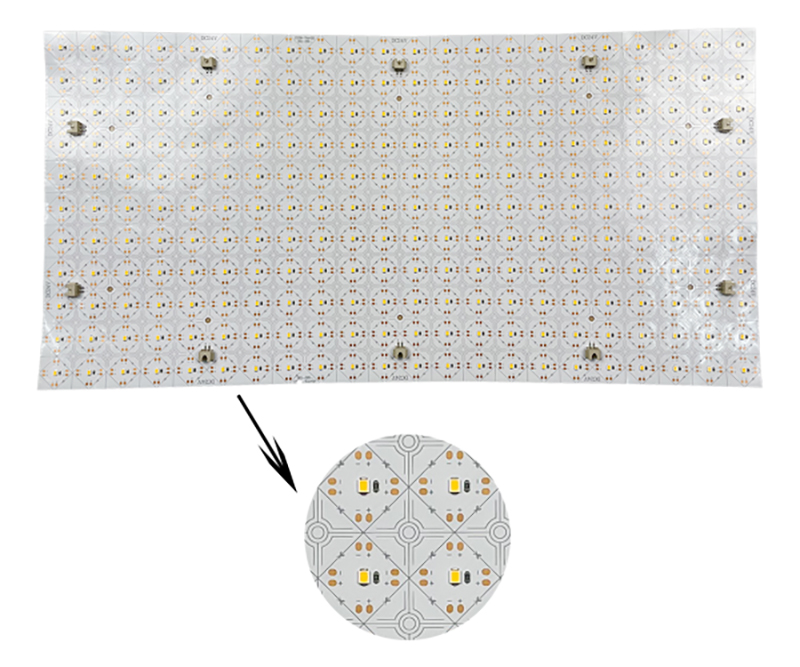

It is flexible panel sheet, up to 28W/M and make it the perfect complement to area illuminations. One panel sheet is 490mm by 245mm with single led cuttable and lumens output of up to 2800lm per meter, with mini CRI of 80 and 90 + is optional. It is available in 2700K,3000K,4000K,6000K. it is completed with 3m Self-adhesive backing for easy fixing. Cut points every 22.3mm and a 3-year guarantee.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | IP Rate |
TSPSW20-283527-24CV-242M-490245 | 24V | 28W/PC (max) | 2835 | 242pcs/meter | 490*245 | 120 | 80+ | 2700K | 22.3mm | 2800LM | 100lm/w | IP20/IP65 |
TSPSW20-283530-24CV-242M-490245 | 24V | 28W/PC (max) | 2835 | 242pcs/meter | 490*245 | 120 | 80+ | 3000K | 22.3mm | 2800LM | 100lm/w | IP20/IP65 |
| TSPSW20-283540-24CV-242M-490245 | 24V | 28W/PC (max) | 2835 | 242pcs/meter | 490*245 | 120 | 80+ | 4000K | 22.3mm | 2800LM | 100lm/w | IP20/IP65 |
| TSPSW20-283560-24CV-242M-490245 | 24V | 28W/PC (max) | 2835 | 242pcs/meter | 490*245 | 120 | 80+ | 6000K | 22.3mm | 2800LM | 100lm/w | IP20/IP65 |

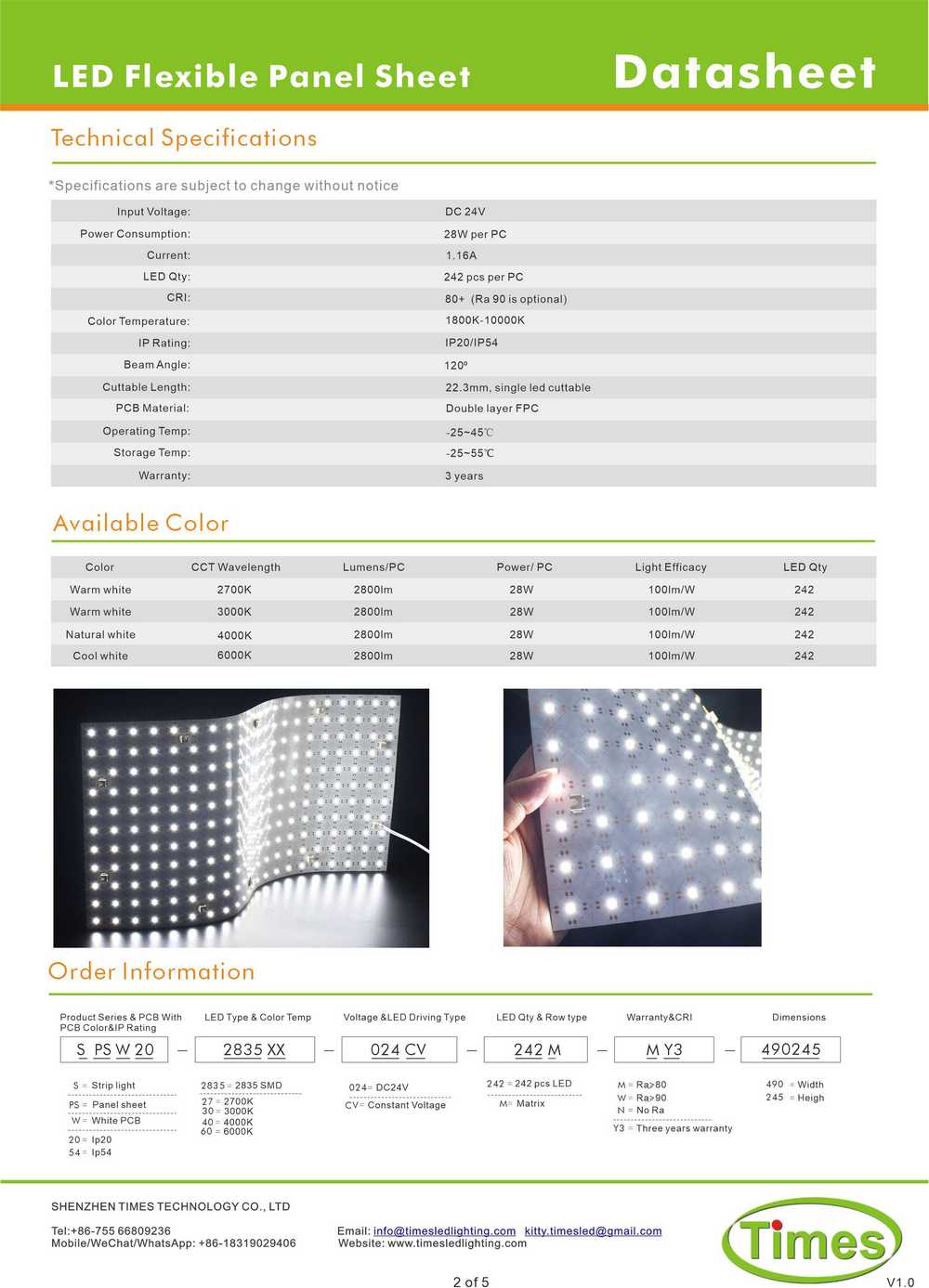

Technical Data:
