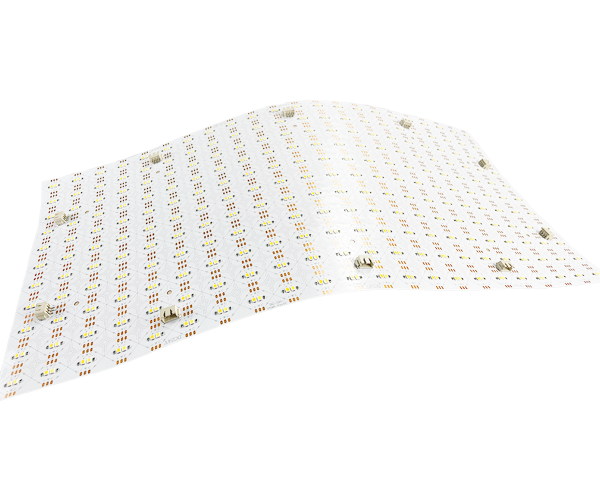

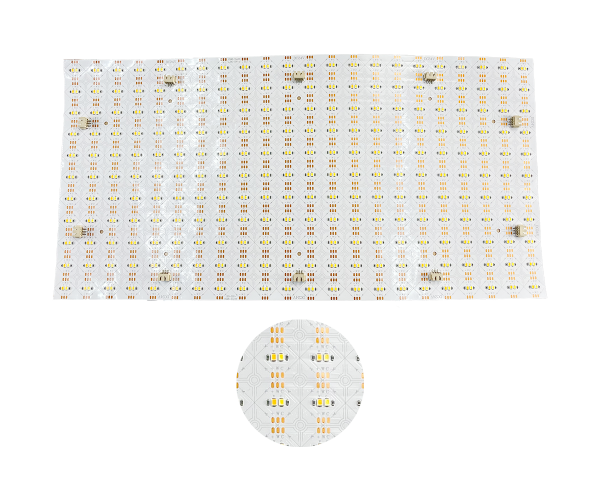

Dual Color LED Panel Sheet 484Leds DC 24V 40W IP20 2835 490*245mm Dimension

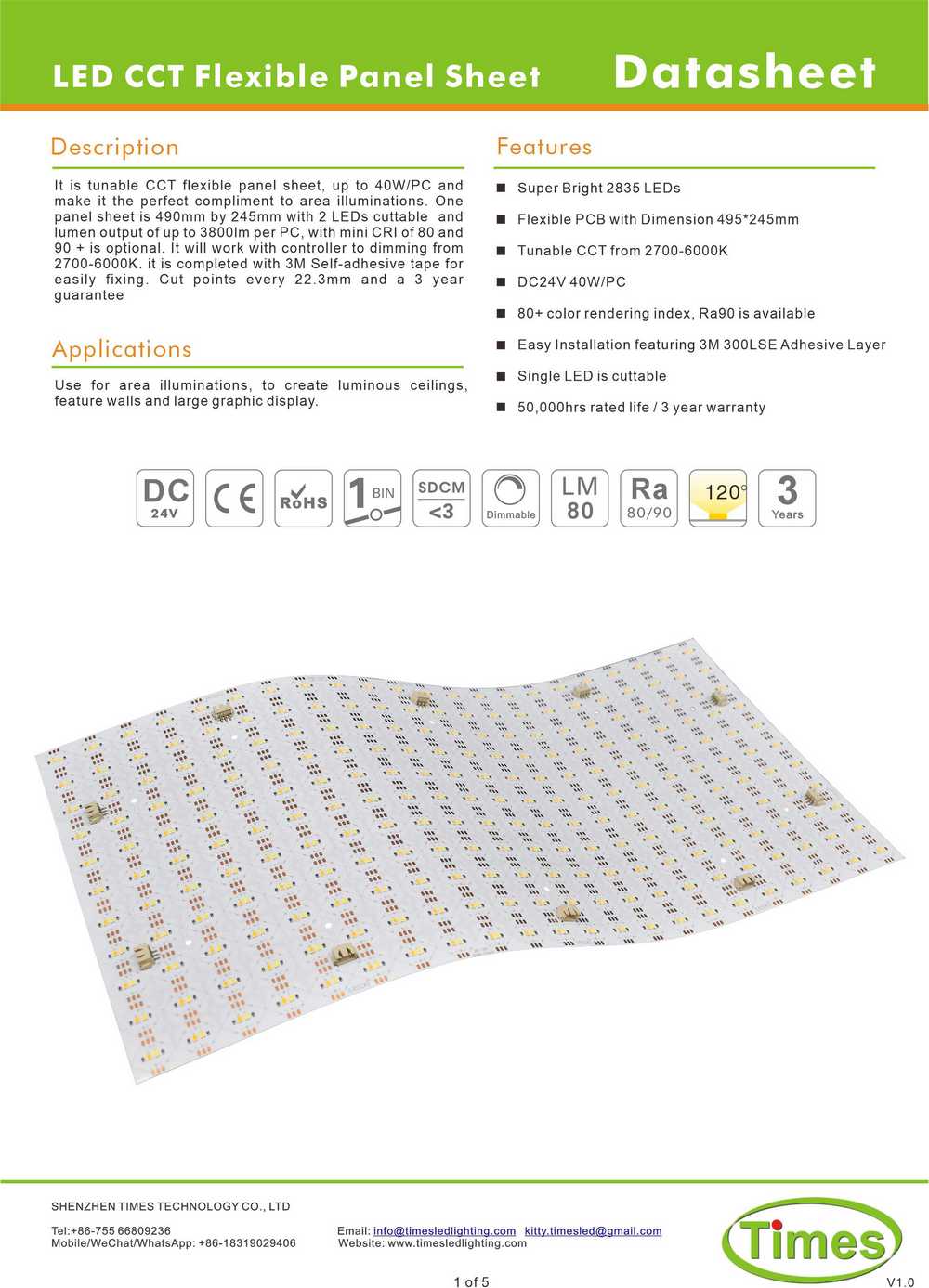

It is tunable CCT flexible panel sheet, up to 40W/M and make it the perfect complement to area illuminations. One panel sheet is 490mm by 245mm with Double led cuttable and lumens output of up to 3800lm per meter, with mini CRI of 80 and 90 + is optional. It will work controller to dimming from 2700-6000K. it is completed with 3m Self-adhesive backing for easy fixing. cut points every 22.3mm and a 3-year guarantee.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | IP Rate |
TSPSW20-283527-24CV-484M-490245 | 24V | 40W/PC (max) | 2835 | 484pcs/meter | 490*245 | 120 | 80+ | 2700K | 22.3mm | 4000LM | 100lm/w | IP20 / IP65 |
TSPSW20-283530-24CV-484M-490245 | 24V | 40W/PC (max) | 2835 | 484pcs/meter | 490*245 | 120 | 80+ | 3000K | 22.3mm | 4000LM | 100lm/w | IP20 / IP65 |
| TSPSW20-283540-24CV-484M-490245 | 24V | 40W/PC (max) | 2835 | 484pcs/meter | 490*245 | 120 | 80+ | 4000K | 22.3mm | 4000LM | 100lm/w | IP20 / IP65 |
| TSPSW20-283560-24CV-484M-490245 | 24V | 40W/PC (max) | 2835 | 484pcs/meter | 490*245 | 120 | 80+ | 6000K | 22.3mm | 4000LM | 100lm/w | IP20 / IP65 |

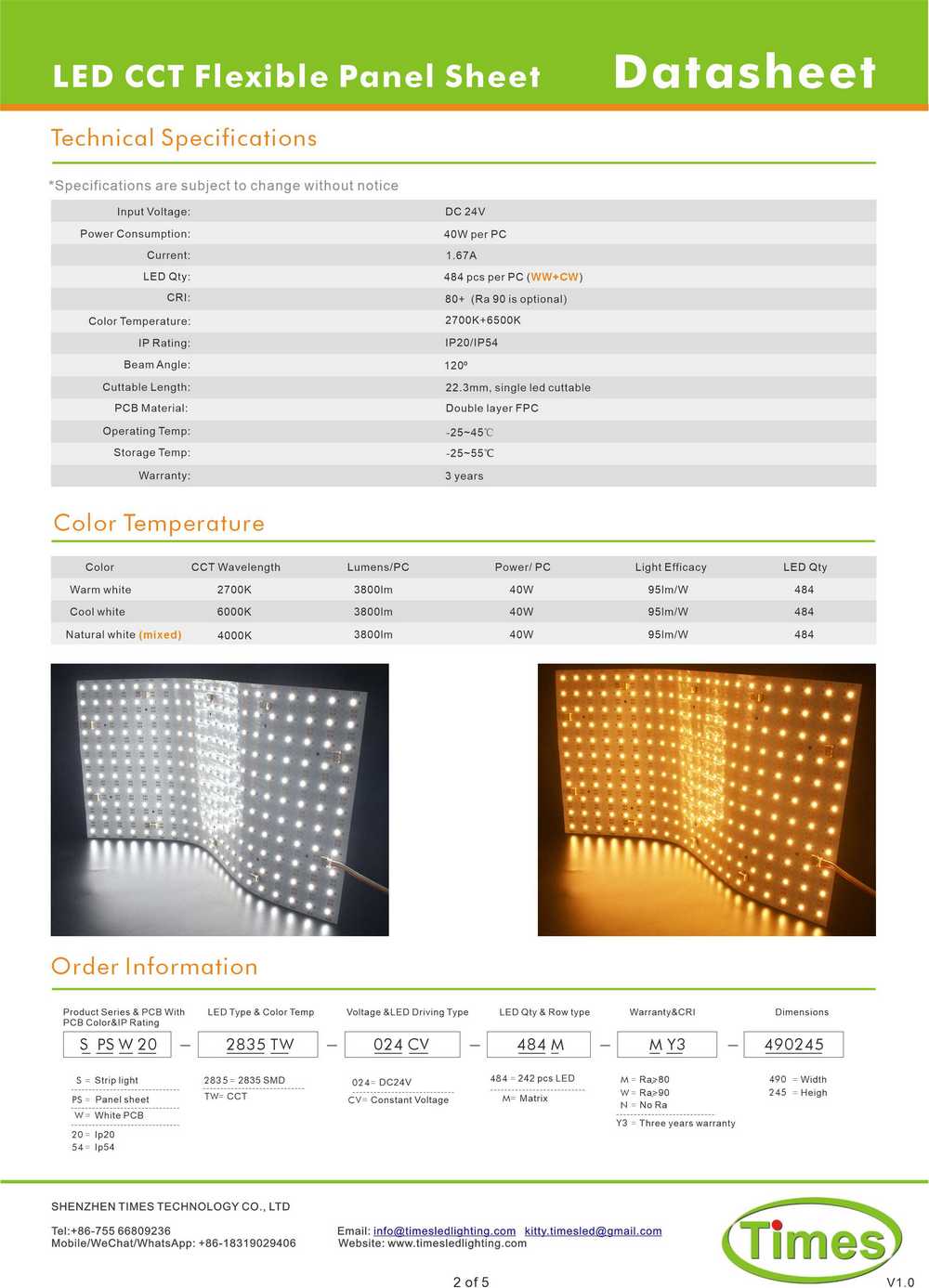

Technical Data:
