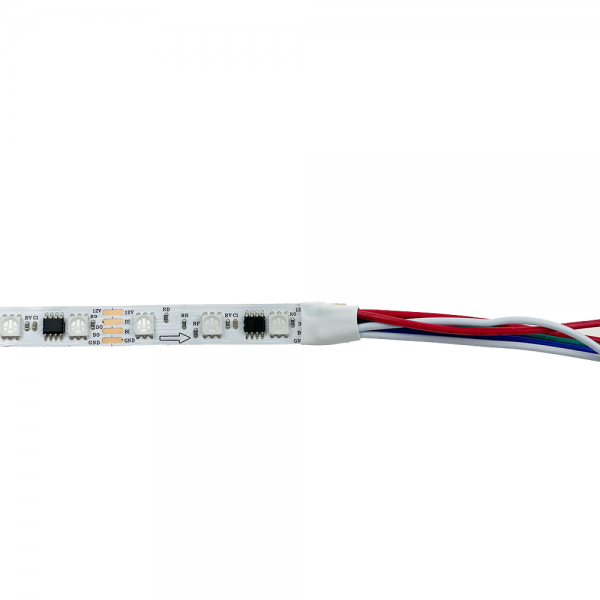

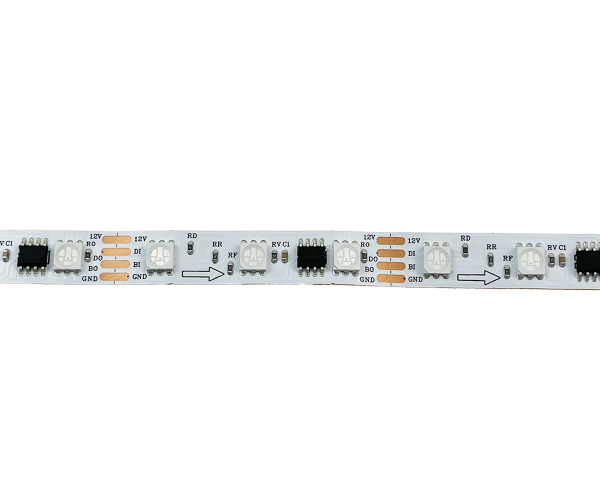

Addressable White Color TM1934 IC Digital 60Leds DC 12V IP20 IP65 IP67 IP68 5050 2OZ 10mm PCB Led Strip

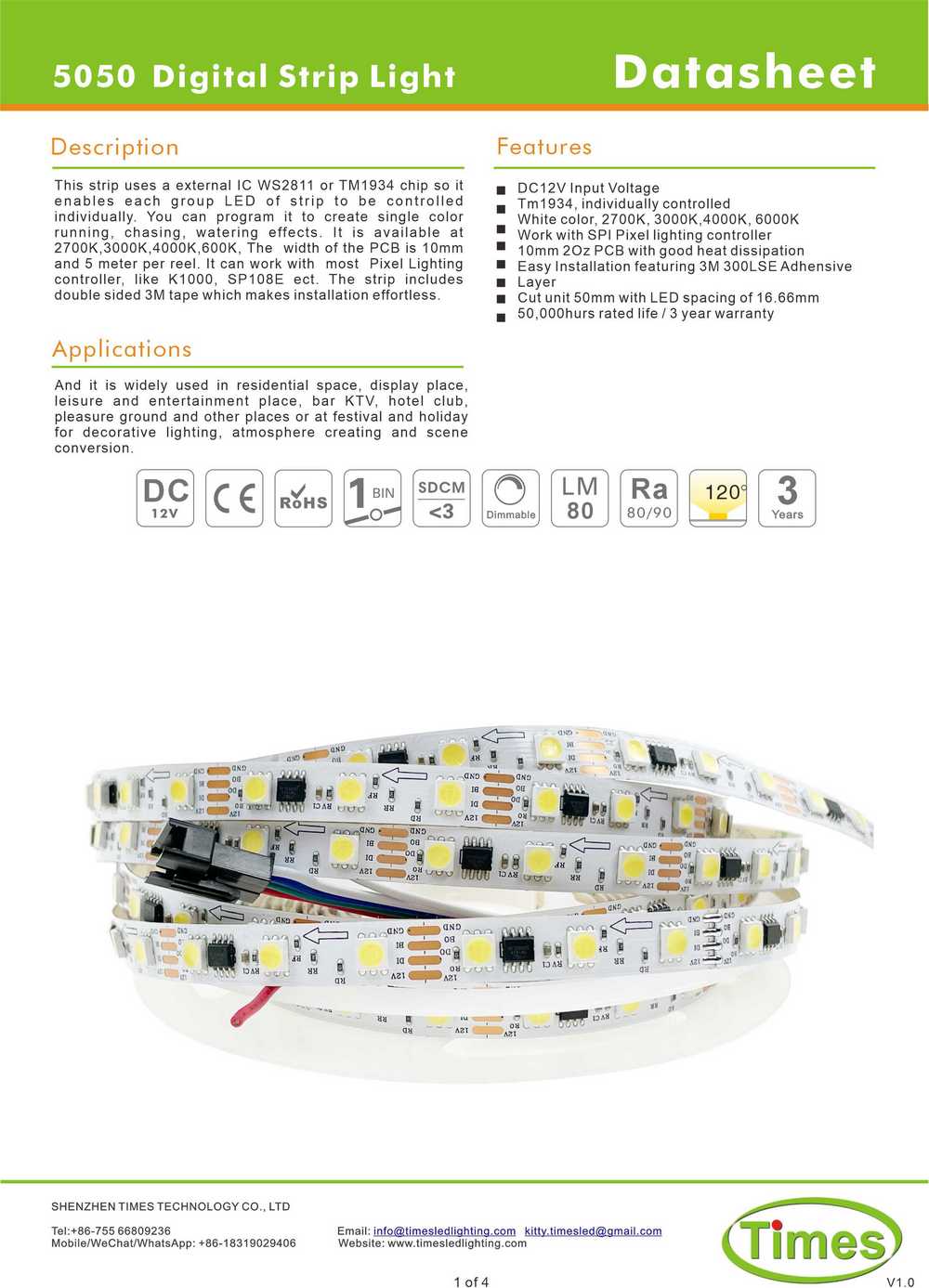

Individually Addressable. Dream single-color Programmable LED Strip with 5050 SMD LEDs, featuring an external TM1934 IC, built into the 5050SMD. It includes static effects, chasing effects, special effects, etc. It is available in 2700K,3000K,4000K,6000K or red, green, blue color, high brightness and high efficiency. it is completed with 3m Self-adhesive backing for easy fixing into LED channel.
Order Information:
Model NO. | CCT-Wavelength | Voltage | Power | Pixels/M | LED Type | LED Qty | PCB Width | CRI | Cut Unit | Lumen Output | Efficiency | Max Run |
S10WXX-505027-012AD-060S-MY3-TM1934 | 2700K | 12V | 12W | 60 | 5050 | 60 | 10mm | 80 | 50mm | 1080LM/W | 90LM/W | 5M |
S10WXX-505027-012AD-060S-MY3-TM1934 | 3000K | 12V | 12W | 60 | 5050 | 60 | 10mm | 80 | 50mm | 1080LM/W | 90LM/W | 5M |
| S10WXX-505027-012AD-060S-MY3-TM1934 | 4000K | 12V | 12W | 60 | 5050 | 60 | 10mm | 80 | 50mm | 1140LM/W | 95LM/W | 5M |
| S10WXX-505027-012AD-060S-MY3-TM1934 | 6000K | 12V | 12W | 60 | 5050 | 60 | 10mm | 80 | 50mm | 1140LM/W | 95LM/W | 5M |

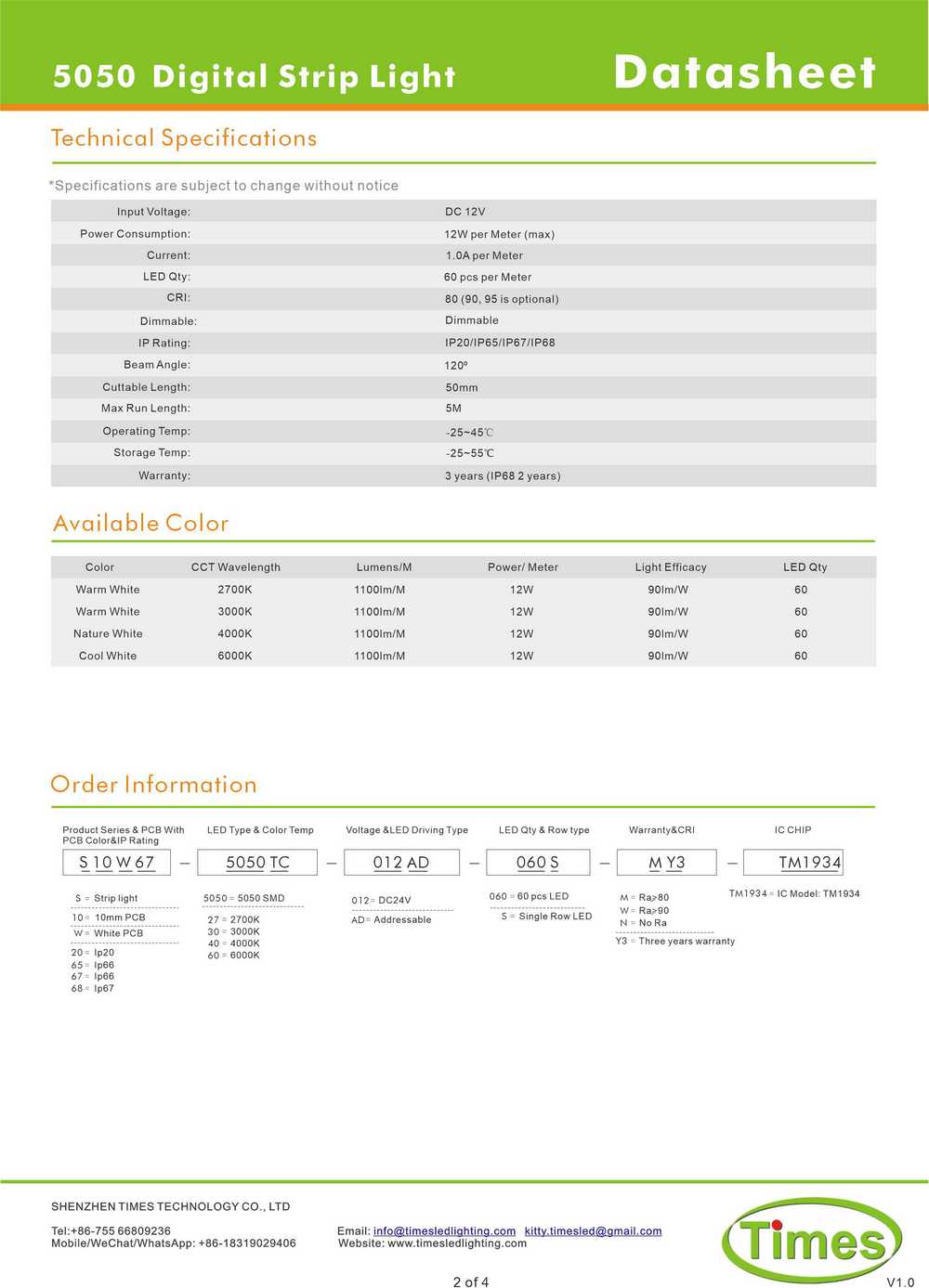

Technical Data:
Accessories:
 | Middle Connector Transparent Acrylic, with 4pins, non waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic, with 4pins,150mm length wire, non-waterproof strip to Power |
 | Strip to Strip with Wire Transparent Acrylic, with 4pins,150mm wire, both ends with connector. Non-waterproof, strip to strip |  | Strip to Wire Connector PVC, with 4pins,150mm length wire, waterproof strip to Power |
 | Middle Connector
PVC, with 4pins, waterproof strip to strip | | Strip to Strip Connector PVC,10mm PCB with 4pins,150mm wire, both ends with connector. waterproof strip to strip |
