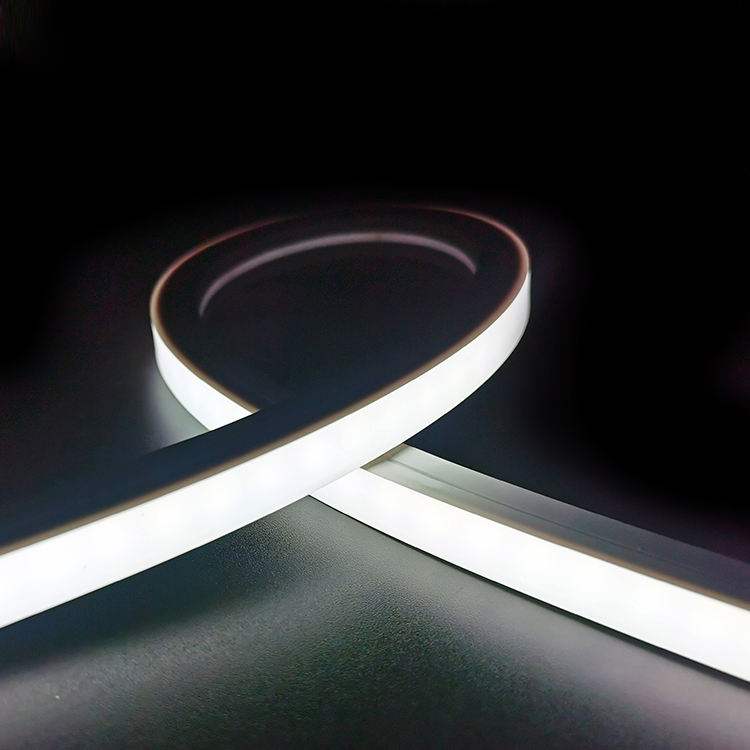

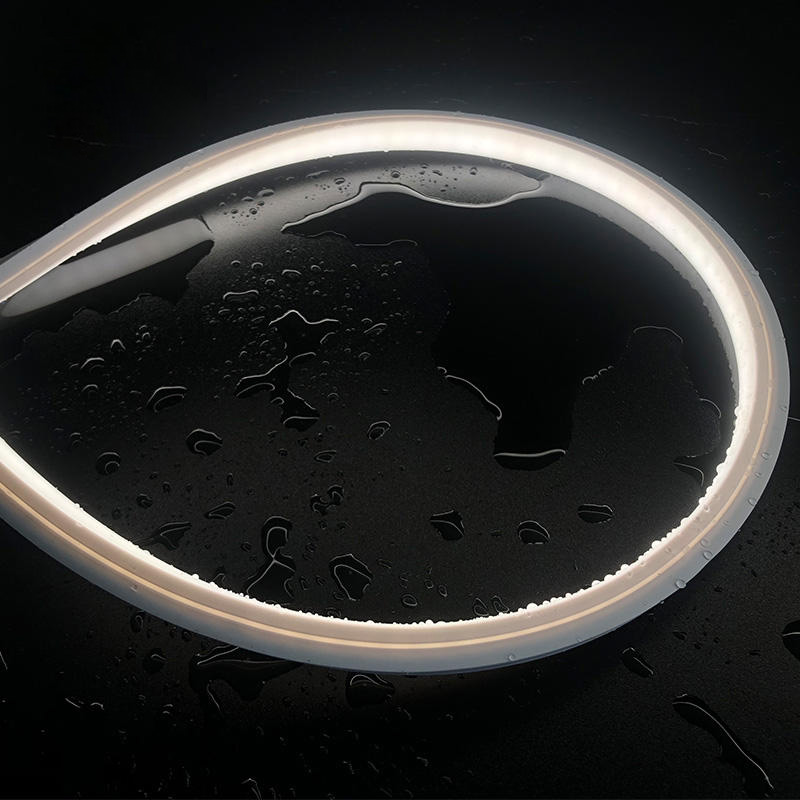

1010 Top-Bend IP67 Waterproof Silicone LED Neon Flex

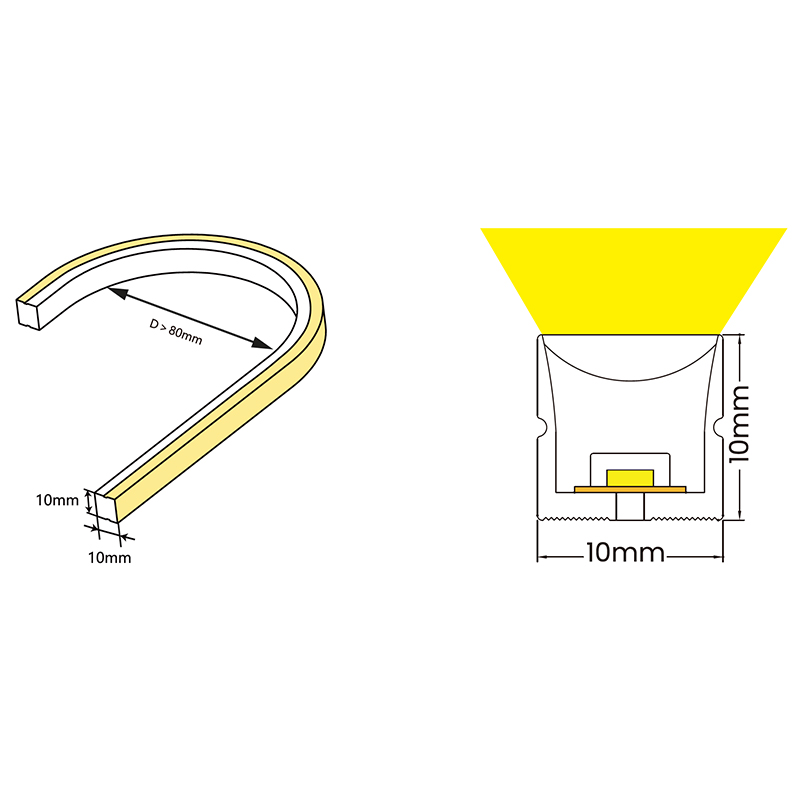

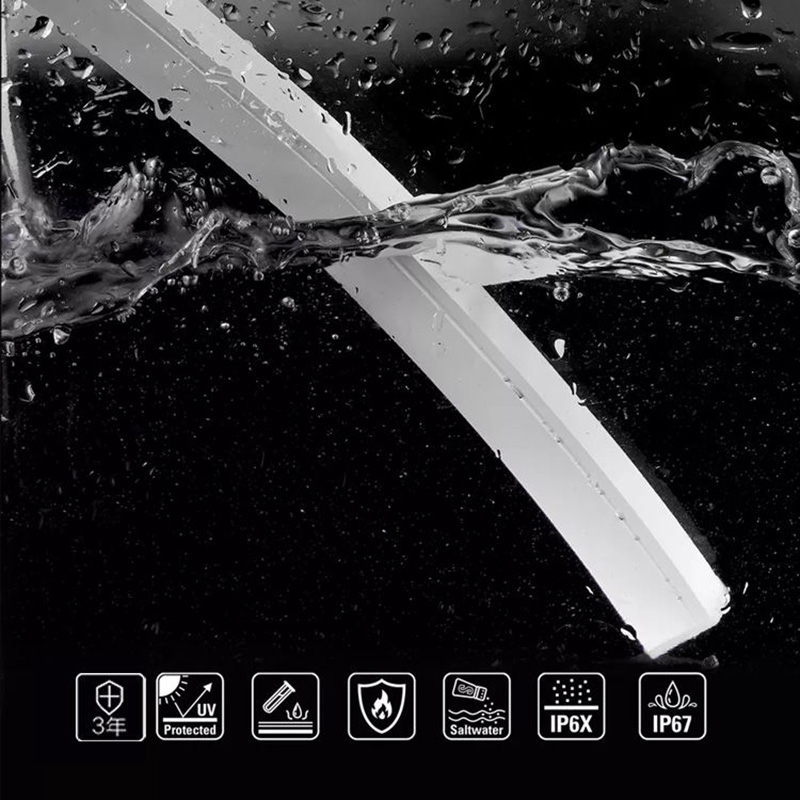

This 1010 Top-Bend LED Neon Flex uses high brightness SMD2835 LED, 120 LEDs per meter with high light efficiency. Its housing is made by high-quality food-grade silicone, making it suitable for both indoor and outdoor applications. Its top-bend design (W10mm × H10mm) allows creative installations, while the high-CRI light source (80+, optional Ra90) ensures accurate color rendering and bright, uniform illumination. This LED Neon Flex is UV and saltwater resistant, providing durability against environmental factors.
Order Information:
Model NO. | Voltage | Power/M | Size | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | Length/Roll |

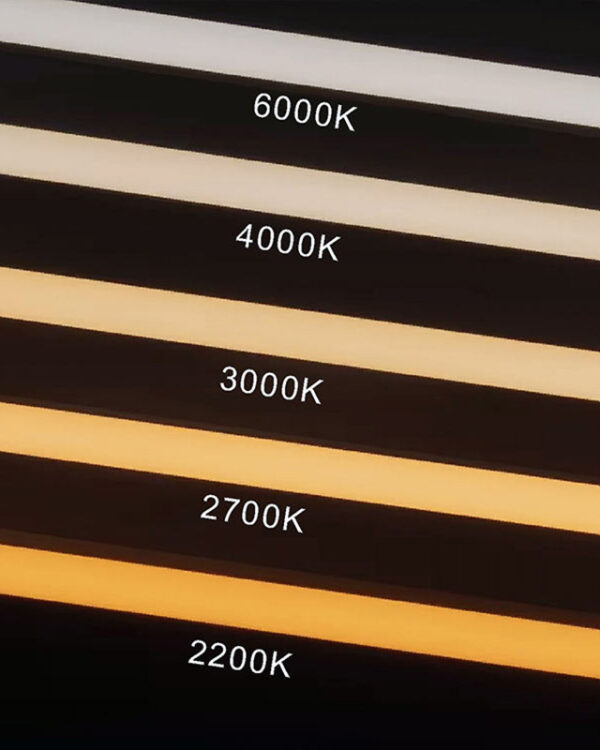

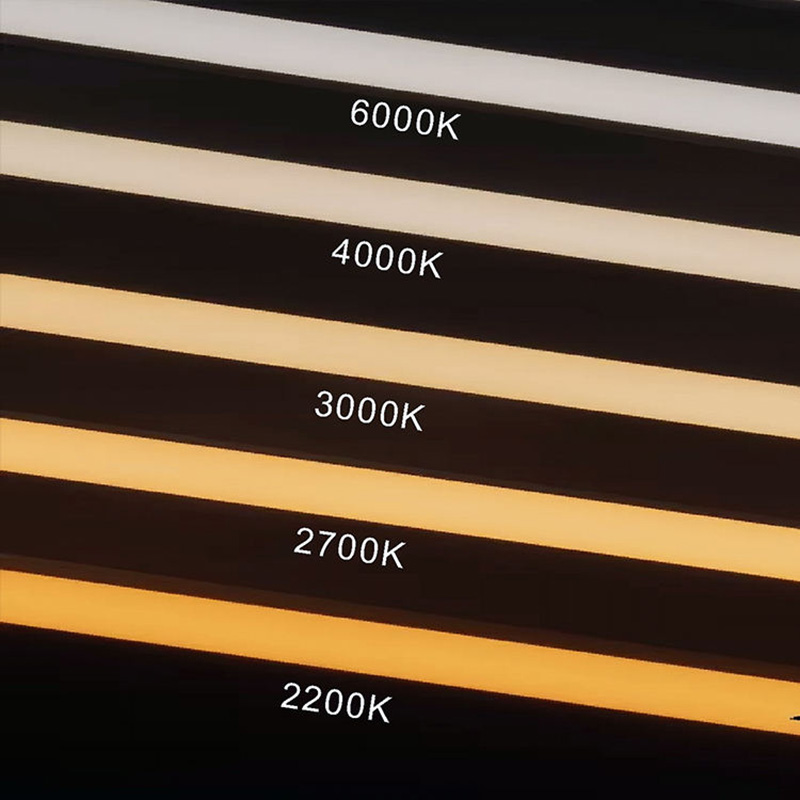

TS-NF08W67-283527-24CV-120S-T1010 | DC24V | 10W | 10x10mm | SMD2835 | 120 | 8mm | 120 | 80/90 | 2700 | 50mm | 400LM | 40LM/W | 5m |
TS-NF08W67-283530-24CV-120S-T1010 | DC24V | 10W | 10x10mm | SMD2835 | 120 | 8mm | 120 | 80/90 | 3000 | 50mm | 450LM | 45LM/W | 5m |
| TS-NF08W67-283540-24CV-120S-T1010 | DC24V | 10W | 10x10mm | SMD2835 | 120 | 8mm | 120 | 80/90 | 4000 | 50mm | 500LM | 50LM/W | 5m |
| TS-NF08W67-283560-24CV-120S-T1010 | DC24V | 10W | 10x10mm | SMD2835 | 120 | 8mm | 120 | 80/90 | 6000 | 50mm | 550LM | 55LM/W | 5m |

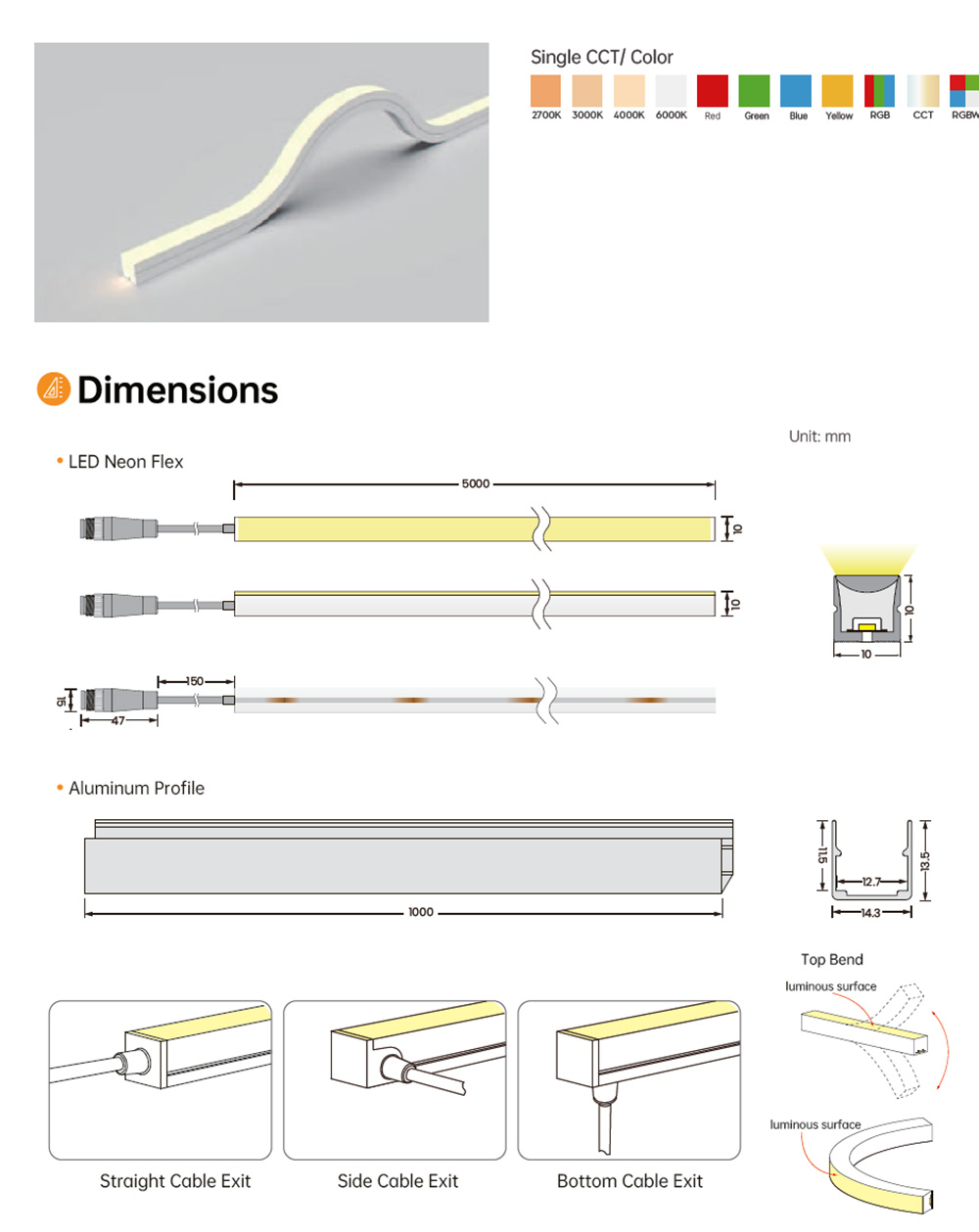

Technical Data:


Mounting Accessories for Option:

Cable Lead Options:

Wires & Connectors:

Wiring Diagram:
