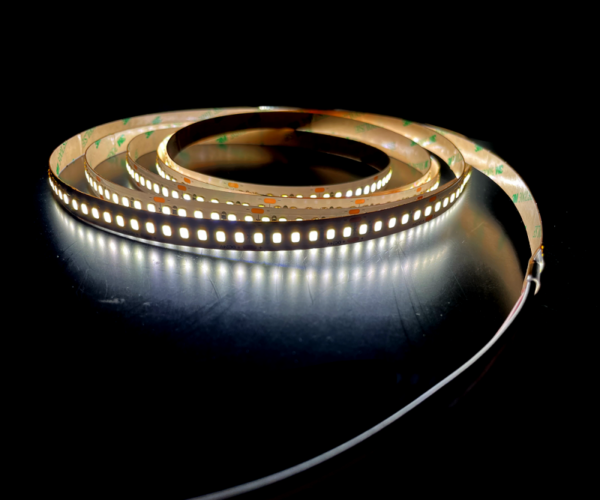

DC24V White Color SMD2835 180-LED 18W 10MM PCB 2Oz LED Strip Light
This LED strip features 180 high-brightness 2835 LEDs, operating at DC 24V with a power consumption of 18W. Its 10mm width provides better compatibility with standard aluminum profiles, making it suitable for various lighting installations. With color temperatures ranging from 2700K to 6000K, it offers flexible lighting solutions for different environments. Designed for efficiency and durability, this strip ensures stable performance and uniform illumination.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | CCT | Cut Unit | Lumen Output | Efficiency | Max Run |
| S10WXX-283527-024CV-180S-MY3 | 24V | 18W | SMD2835 | 180 | 10mm | 120 | 80 | 2700K | 33.3mm | 1530lm | 85lm/W | 5M |
| S10WXX-283530-024CV-180S-MY3 | 24V | 18W | SMD2835 | 180 | 10mm | 120 | 80 | 3000K | 33.3mm | 1620lm | 90lm/W | 5M |
| S10WXX-283540-024CV-180S-MY3 | 24V | 18W | SMD2835 | 180 | 10mm | 120 | 80 | 4000K | 33.3mm | 1710lm | 95lm/W | 5M |
| S10WXX-283560-024CV-180S-MY3 | 24V | 18W | SMD2835 | 180 | 10mm | 120 | 80 | 6000K | 33.3mm | 1750lm | 97lm/W | 5M |
Technical Data:
Accessories:
 | Strip to Strip Connector Transparent Acrylic, 10mm PCB with 2pins, non-waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic,10mm PCB with 4pins,150mm length wire, non-waterproof strip to wire |
 | Strip to Strip with Wire Transparent Acrylic, 10mm PCB with 2pins, 150mm wire, both ends with connector. Non-waterproof, strip to strip |
