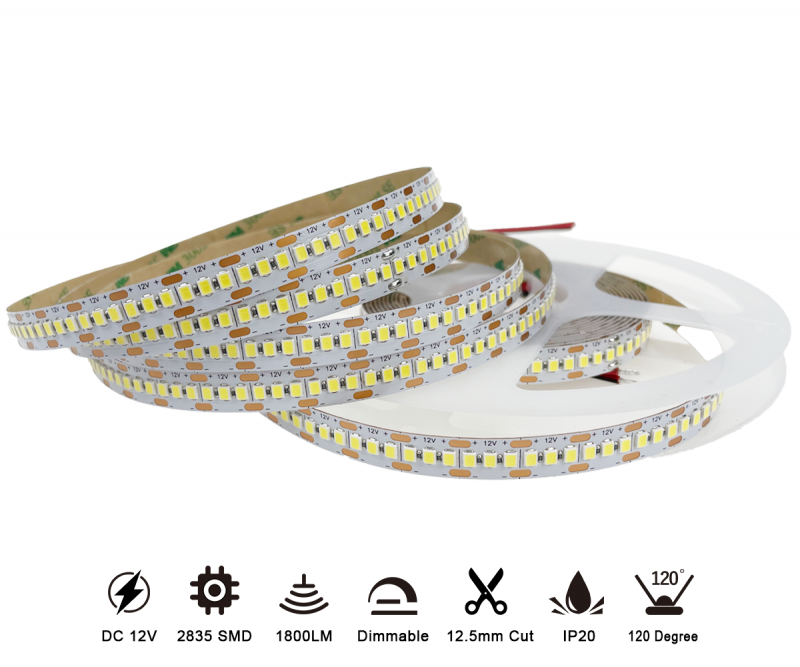

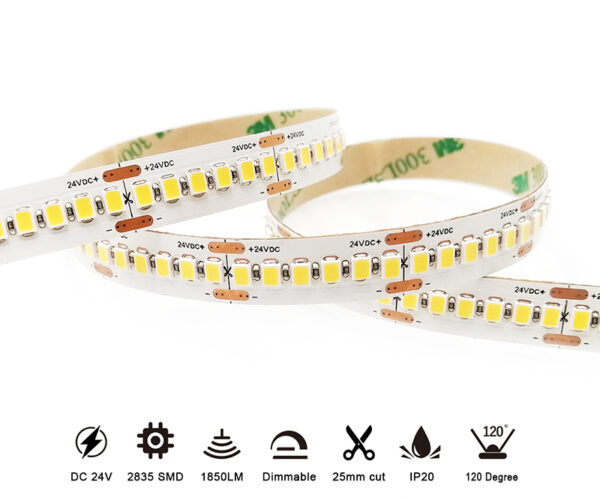

DC12V/24V White Color SMD2835 240-LED 19.2W 10MM PCB 2Oz LED Strip Light
This LED strip features 240 high-brightness 2835 LEDs, operating on DC12V or DC24V with a power consumption of 19.2W. Its 10mm width allows for easy installation in standard aluminum profiles, making it ideal for various lighting applications. With color temperatures ranging from 2700K to 6000K, it offers versatile illumination options. Designed for stability and efficiency, this strip ensures uniform brightness and reliable performance.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | CCT | Cut Unit | Lumen Output | Efficiency | Max Run |
S10W20-283527-024CV-240S-MY3 | 24V | 19.2W | SMD2835 | 240 | 10mm | 120 | 80 | 2700K | 25mm | 1632lm | 85lm/W | 5M |
S10W20-283530-024CV-240S-MY3 | 24V | 19.2W | SMD2835 | 240 | 10mm | 120 | 80 | 3000K | 25mm | 1728lm | 90lm/W | 5M |
S10W20-283540-024CV-240S-MY3 | 24V | 19.2W | SMD2835 | 240 | 10mm | 120 | 80 | 4000K | 25mm | 1824lm | 95lm/W | 5M |
| S10W20-283560-024CV-240S-MY3 | 24V | 19.2W | SMD2835 | 240 | 10mm | 120 | 80 | 6000K | 25mm | 1862lm | 97lm/W | 5M |
Technical Data:
Accessories:
 | Strip to Strip Connector Transparent Acrylic, 10mm PCB with 2pins, non-waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic,10mm PCB with 4pins,150mm length wire, non-waterproof strip to wire |
 | Strip to Strip with Wire Transparent Acrylic, 10mm PCB with 2pins, 150mm wire, both ends with connector. Non-waterproof, strip to strip |
