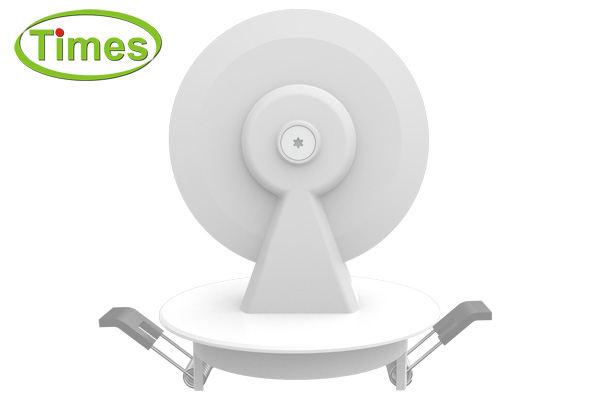

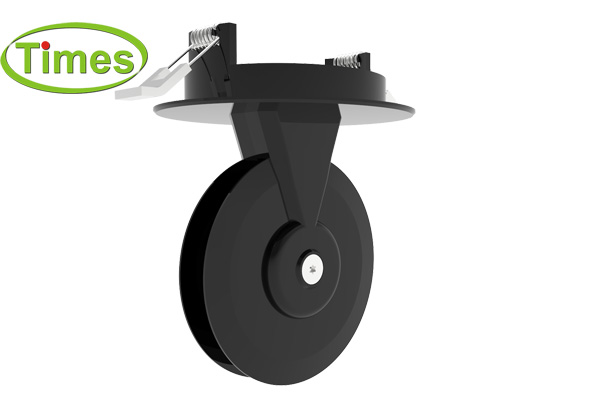

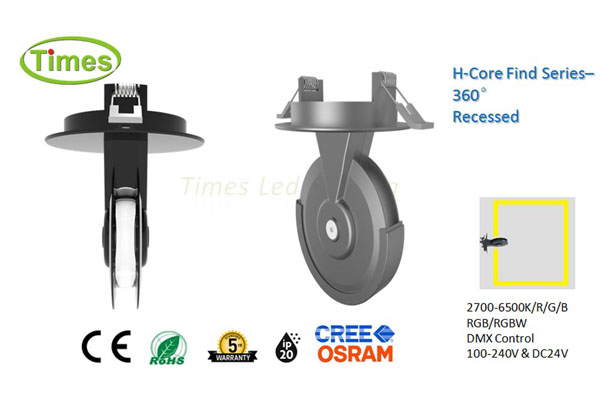

LED Window Light 360° – Recessed Type H-CORE Series
LED window light is the ideal lighting supply to help you achieve the latest graphic lighting. It is the new decorative lighting trend that will create a 3D light-blade like effect, the light will adpt to the frame shape of applied location perfectly, emphasizes each curve and angle, vector surfaces and highlight the texture to the application areas, no dead spot left.
Times led window lamp is using Cree led chips & meanwell driver, together with DMX compatible and outstanding performance(extremely narrow beam angles-4° only) , they are appearing in more and more projects as decorative lighting now.There are both surface mounted & Recessed type.
| Item NO. | TS-360-CREE-5/9W-RE |
| Light Source | CREE LED |
| Beam Angle | 360 degrees |
| Color | White, Red, Green, Blue, RGB, RGBW |
| Input Voltage(V) | AC100-240V for Single Color (Meanwell) DC24V for RGB or RGBW |
| Rated Power(W) | 9W, 5Wx3CH, 5Wx4CH |
| CCT | 2700-6500K (White); RGB/RGBW |
| IP Rate | Indoor Use Only |
| CRI (Ra>) | 80 (White Color) |
| Housing Color | White, Black |
| Working Temperature(℃) | -20 – +45 |
| Lifespan (Hour) | >50,000 |
| Dimensions(mm) | L106xW32.6xH140.5mm |
| Fixture Weight | 0.9kg |
| Brand Name | TIMES |
| Housing Material | Aluminum Alloy |
| Installation | Recessed Type |
| Warranty Period | 5 Years |
| Package | 24pcs/Carton |
| Carton Size | 445x400x500mm, 22.6kgs/CTN |
- Private moulding and unique structure design
- High-strength aluminum alloy and optical lens with 360°design
- New decorative lighting that can create a 3D light-blade like effect
- CREE Top quality LEDs
- Recessed Easy Installation
- Different LED colors for choice, white, red, green, blue, RGB or RGBW
- Housing color: black, white
- Angle-shifter available, to get any angle freely
Dimensions:
Light Distribution:
Test Data:
Recessed Installation:
Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage Use.
Package:
24pcs/CTN
22.6Kg/CTN
Dimension: 445*400*500mm/CTN
Here are more videos for reference:
Youtube Video for the light effect of 360degree RGBW color with DMX controller: https://youtu.be/sJpNuBOhpeM
Youtube Video for the light effect of 360degree single color: https://youtu.be/ZTXWgKNSf7E
Youtube Video for the light effect of 360degree RGBW(5000K)：https://youtu.be/EYZunGEQI7g
Youtube Video for the light effect of 360degree ACW(3000K+6000K+Amber)：https://youtu.be/ayfx8uCwDFo
Youtube video for the Comparison between Times & Other led window trick light：https://youtu.be/QMCBywMv698
Youtube Light effect for 360degree RGB led trick light by DMX 171210: https://youtu.be/aoAu1cXGX_U
Aging test:
