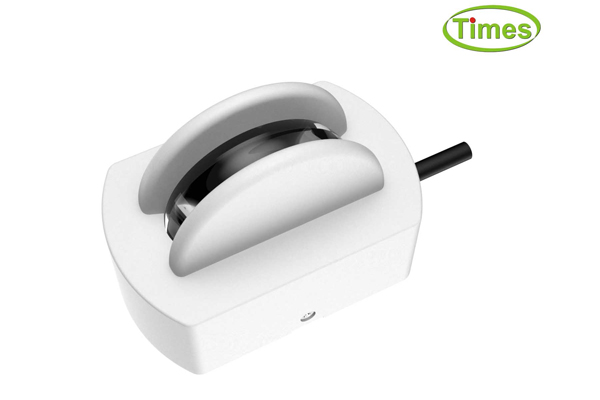

LED Window Light 180degree I-CORE Series
Times led window light is using Cree led chips & meanwell driver, DMX compatible and Single colors only, it help you to create a 3D light-blade like effect.
Specifications
Item NO. | TS-180-NICHIA-7W |
Light Source | Original NICHIA LED |
Beam Angle | 180 degrees |
Color | White, Red, Green, Blue |
Input Voltage(V) | AC100-240V 50-60Hz |
Rated Power(W) | 7W |
CCT | 2700-6500K (White) |
IP Rate | IP65 |
CRI (Ra>) | 80 |
Housing Color | White, Black |
Working Temperature(℃) | -20 – +45 |
Lifespan (Hour) | >50,000 |
Dimensions(mm) | L92xW72xH87mm |
Fixture Weight | 0.6kgs |
Brand Name | TIMES |
Housing Material | Aluminum Alloy |
Installation | Surface Mounted |
Warranty Period | 5 Years |
Package | 27pcs/Carton |
Carton Size | 405x330x335mm, 18.6kgs/CTN |
Product Features
- Private moulding and unique structure design
- High-strength aluminum alloy and optical PC lens with 180° optical design
- New decorative lighting that can create a 3D light-blade like effect
- NICHIA Top quality LEDs, 7W power – single color
- Surface Mounted Easy Installation
- Different colors for choice, white, red, green, blue, RGB/RGBW are available for 360degree lights only
- Housing color: black, white
Structure:
Light Distribution:
Test Data:
Surface Mounted Installation:
Installation Instructions:
Applications
Suitable for Hotel, Corridor, Windowsill, Luxurious Villa, Passage Use, Replace the LED Flood Light.
Package:
27pcs/CTN
18.6Kg/CTN
Dimension: 405*330*335mm/CTN
Youtube Video for Led window trick light: https://youtu.be/c1XF63iHPY0
Youtube Video for the light effect of 360degree RGBW color with DMX controller: https://youtu.be/sJpNuBOhpeM
Youtube Video for the light effect of 360degree single color: https://youtu.be/ZTXWgKNSf7E
Youtube Video for the light effect of 360degree RGBW(5000K):https://youtu.be/EYZunGEQI7g
Youtube Video for the light effect of 360degree ACW(3000K+6000K+Amber):https://youtu.be/ayfx8uCwDFo
Youtube video for the Comparison between Times & Other led window trick light:https://youtu.be/QMCBywMv698
Youtube Light effect for 360degree RGB led trick light by DMX 171210: https://youtu.be/aoAu1cXGX_U
Aging test:
