RGB/CCT/Dimming 3 Channel High Voltage LED Strip Controller S3
This controller is specially designed for AC220-240V High Voltage LED Strips use, 3 channels PWM constant voltage output, control RGB or CCT or single color High Voltage LED strip.
I. Features of RGB/CCT/Dimming High Voltage LED Controller:
- 3 channel high voltage LED strip controller, can control maximum about 50 meters of high voltage LED strip, different LED strip may have difference.
- 3 in 1 function, used for control RGB, color temperature or single color LED strip.
- Match with RF 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control.
- One RF controller accept up to 10 remote control.
- 4096 levels 0-100% dimming smoothly without any fash.
- When using with RGB light, built in 10 dynamic mode, include jump or gradual change style.
- Light on/off fade time 3s selectable.
- Connect with external push switch to achieve on/off and 0-100% dimming function.

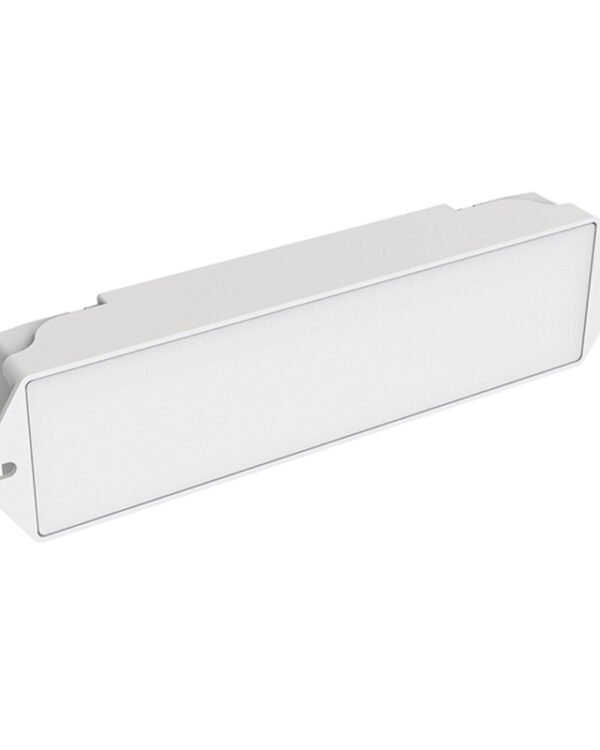

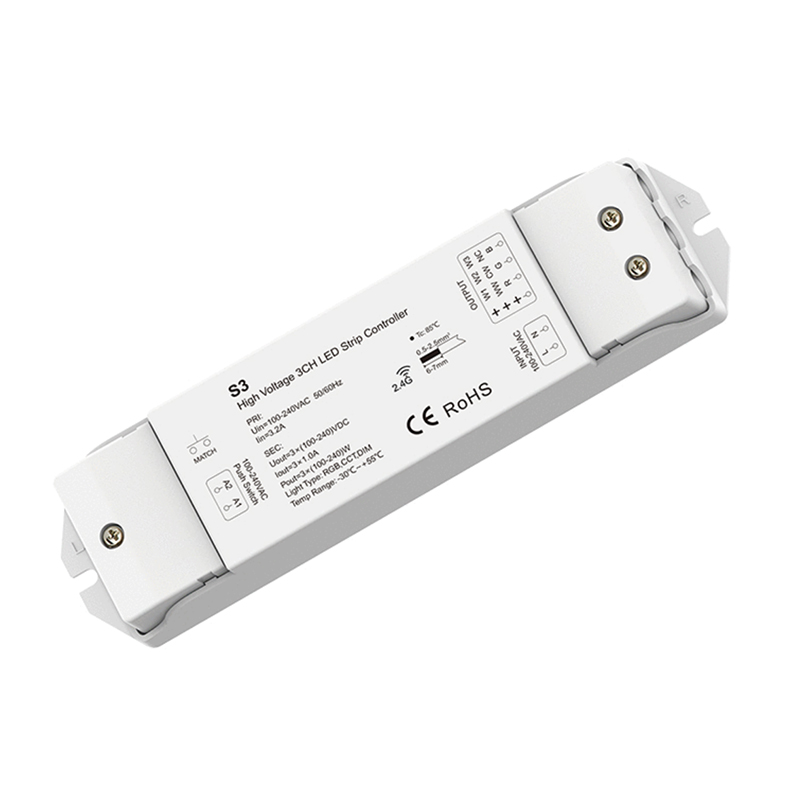

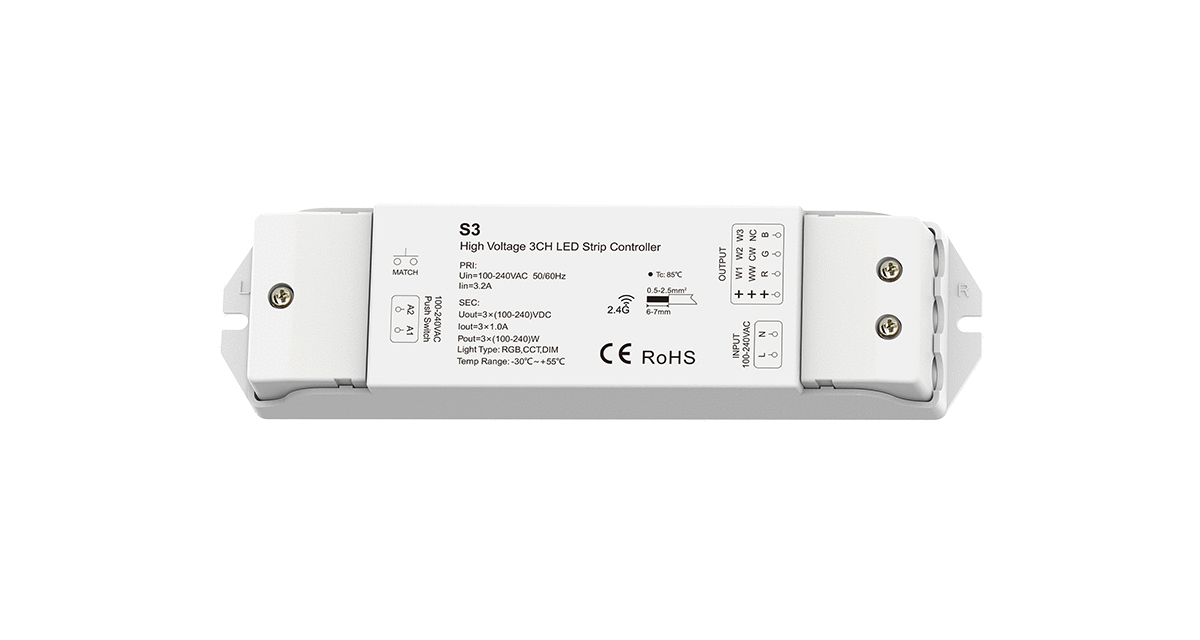

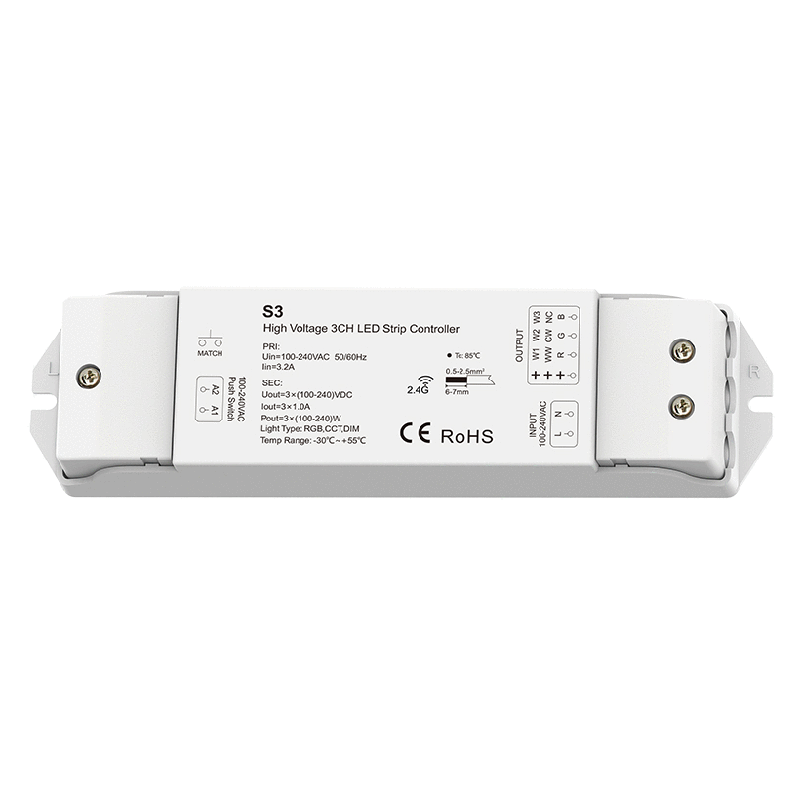

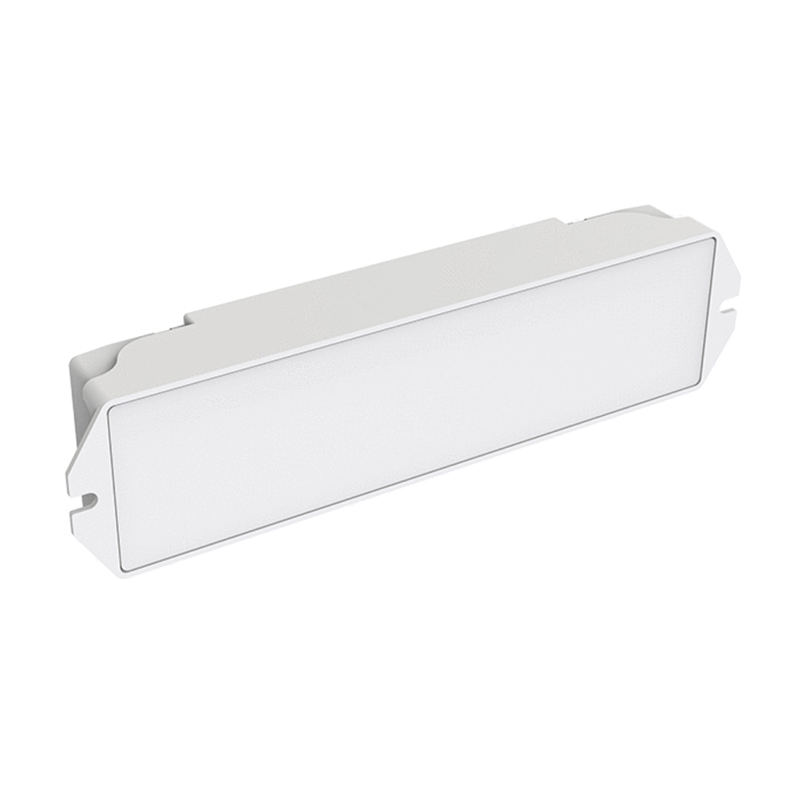

II. High Voltage Controller – S3:

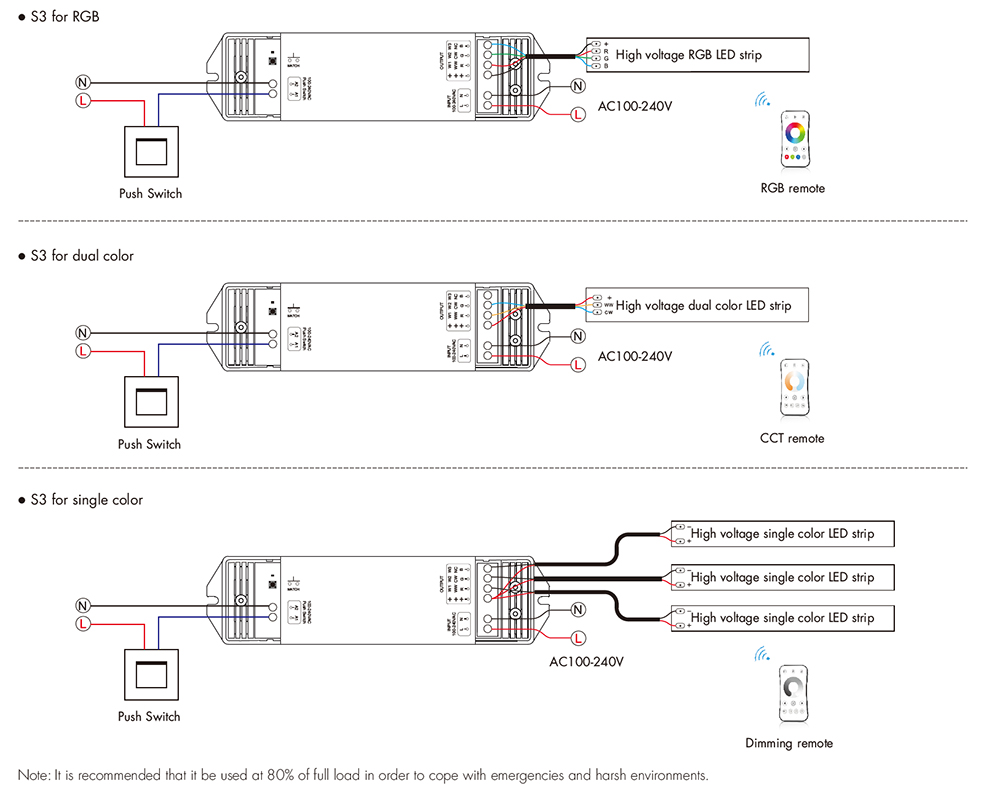

III. Wiring Diagram:

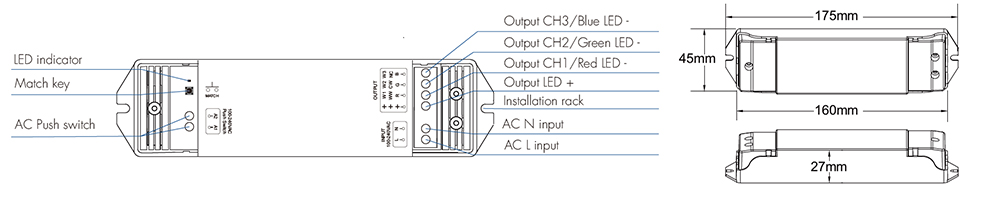

IV. Product Structure:
