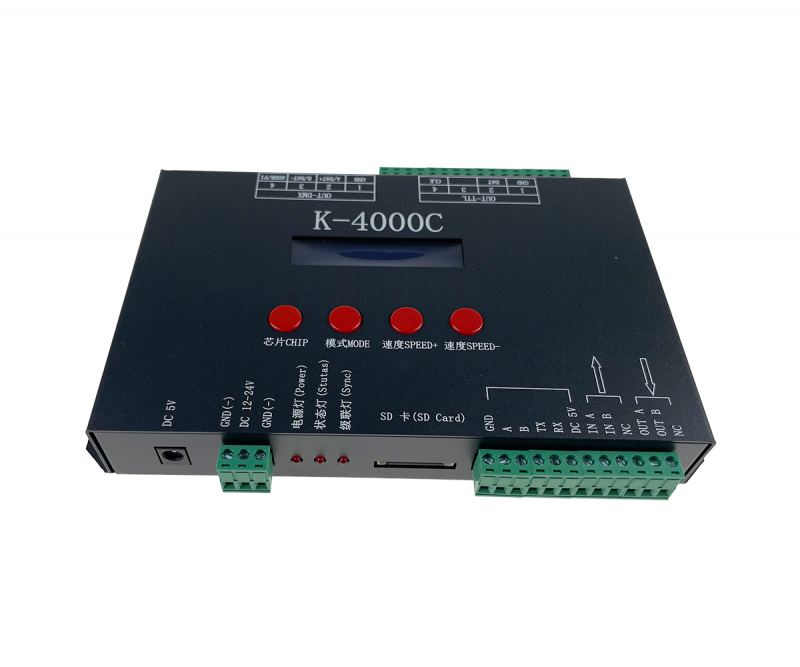

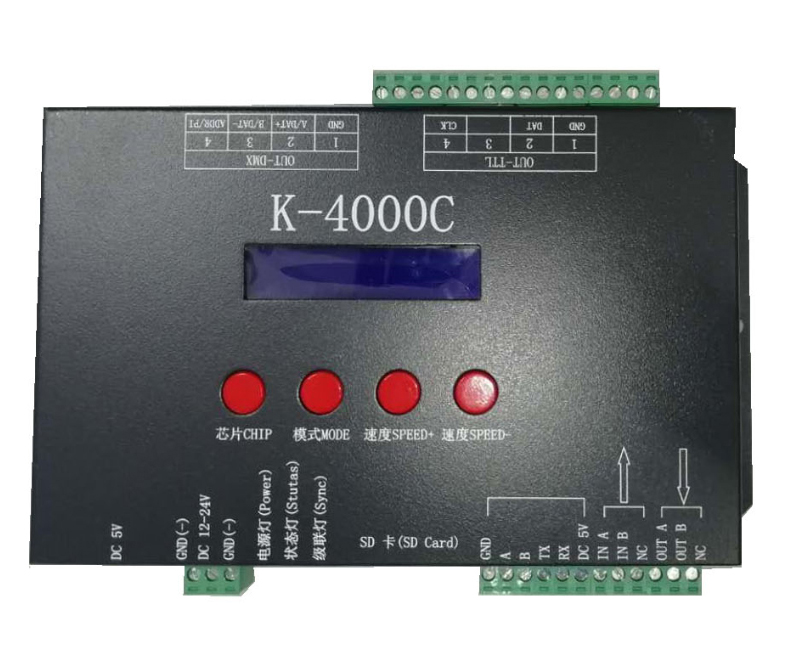

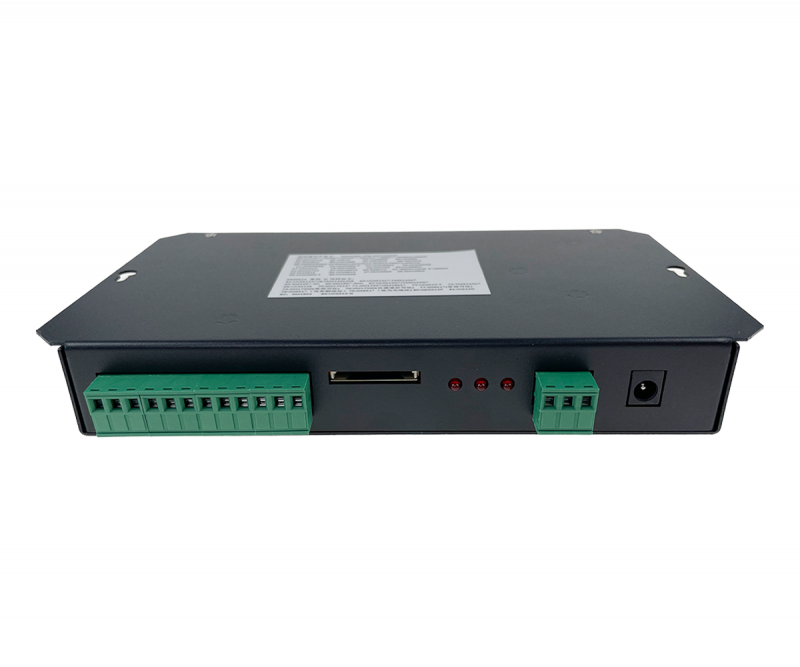

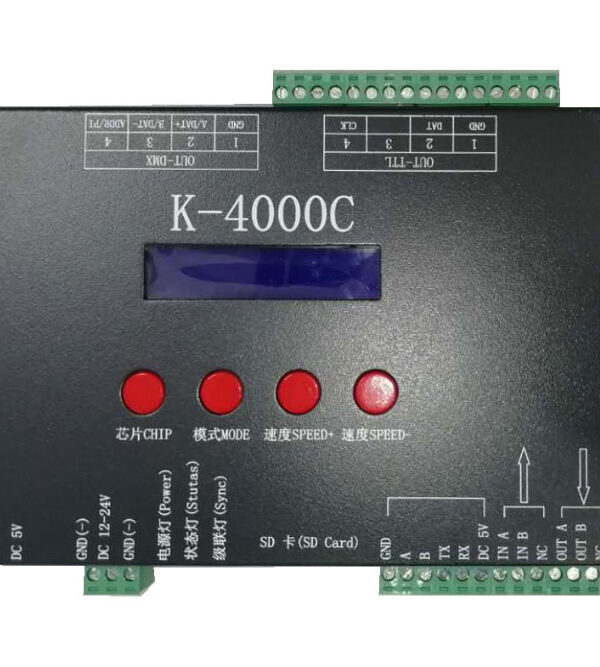

K-4000C Controller for Digital LED Strips
I. Features of K-4000C System:
1. Support 32-65536 level grayscale, correcting with software Gamma.
2. Support various point, line and area light sources, various rules and special-shaped processing.
3. Support 4 output ports, each can carry a maximum of 512/1024 lamps (DMX lamps with a maximum of 512 pixels
take three channels as an example).
4. The play content can be stored in SD card, which can store up to 32 effect files. The SD card capacity supports
128MB-32GB.
5. The controller can be used alone or in cascade. The cascade adopts the photoelectric isolation method, featuring
anti-interference and better stability. The cascade distance between two controllers can reach
150m by using pure copper power cord of 0.5 mm2.
6. The controller with a loaded chip can be locked in the software with the loaded IC, or can be not locked and adjust the
controller’s “CHIP” button to select the loaded IC, which is more flexible and convenient.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our 2016 LedEdit-K V3.26
software or above version, you can set the one-key address writing function.
8. Support 4-channel (RGBW) pixels or single-channel pixels for loading lamps.
9. The built-in effect of the controller supports three channels (RGB) and four channels (RGBW).
10. The controller supports MODBUS third-party control.
11. Support enhanced TTL and 485 differential (DMX) signal output.
12. The controller has 22 test effects and DMX512 channel test function.
II. Support IC Models:
00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812 (support up to Version V1.7 1024*8=8192 pixels)
01: SM16716,16726 (support up to 1024*8=8192 pixels)
02: P9813 (support up to 1024*8=8192 pixels)
03: LPD6803 (support up to 1024*8=8192 pixels)
04: LX1003,1203 (support up to 1024*8=8192 pixels)
05: WS2801 (support up to 1024*8=8192 pixels)
06: LPD1886 (support up to 1024*8=8192 pixels)
07: TM1913 (support up to 1024*8=8192 pixels)
08: TM1914 (support up to 1024*8=8192 pixels)
09: P9883,P9823 (support up to 1024*8=8192 pixels)
10: DMX (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
11: DMX 500K (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
12: DMX 250K-CZF (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
13: DMX 500K-CZF (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
14: UCS5603-Test (support up to 1024*8=8192 pixels)
15: UCS5603A (support up to 1024*8=8192 pixels)
16: UCS5603B (support up to 1024*8=8192 pixels)
17: TM1814 (support up to 1024*8=8192 pixels)
18: INK1003 (support up to 1024*8=8192 pixels)
19: APA102 (support up to 1024*8=8192 pixels)
20: UCS8904 (support up to 1024*8=8192 pixels)
21: SM16714 (support up to 1024*8=8192 pixels)
22: SM16813 (support up to 1024*8=8192 pixels)
23: GS8512 (support up to 512*8=4096 pixels, suggest to load ≤320*8=2560 pixels)
24：QED3110 (NA)
25: WS2816 (support up to 1024*8=8192 pixels)
26: UCS9812 (support up to 1024*8=8192 pixels)
27: SM16803 (support up to 1024*8=8192 pixels)
28: SM16804 (support up to 1024*8=8192 pixels)
29: UCS2603-T (support up to 1024*8=8192 pixels)
30: UCS2603 (support up to 1024*8=8192 pixels)
Note:
1. Lamps of RGBW four channels should select K-4000-RGBW, and of more than four channels should select K-4000-RGBWYA.
2. Lamps of single channel should select K-4000-W. At this time, one channel represents one pixel, and the software effect is white light.

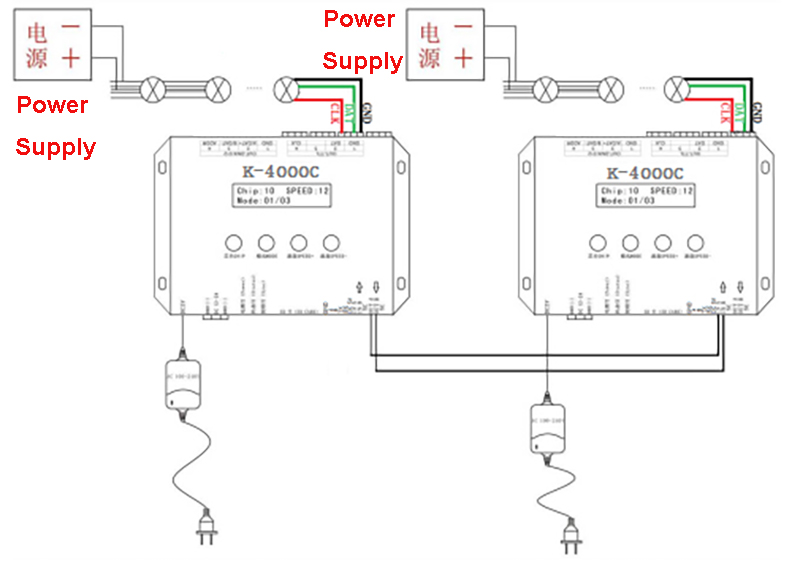

III. Connection Diagram:

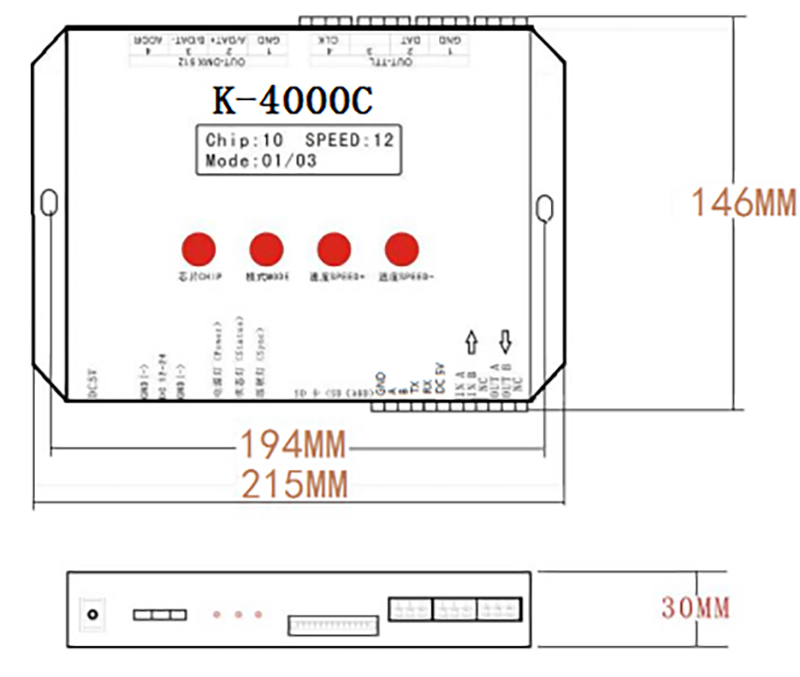

IV. Product Size:
