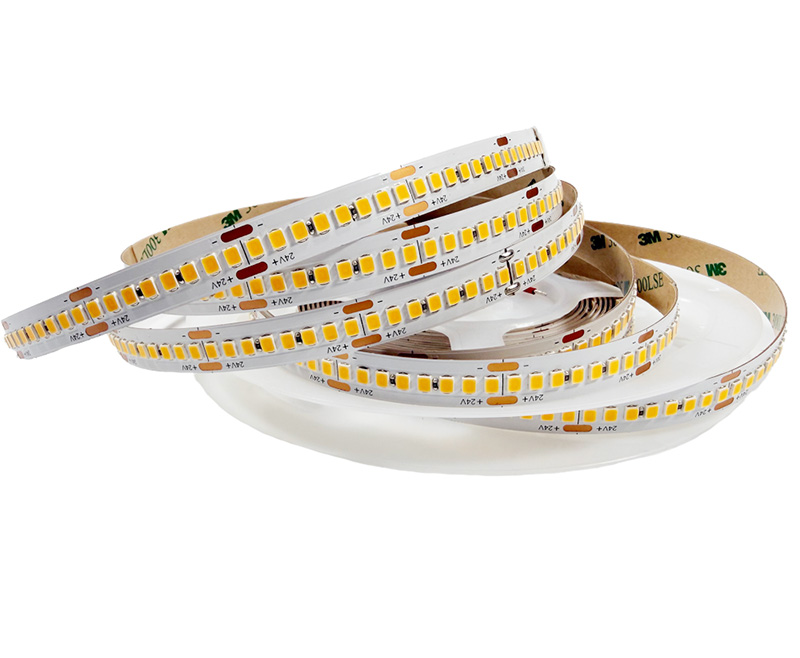

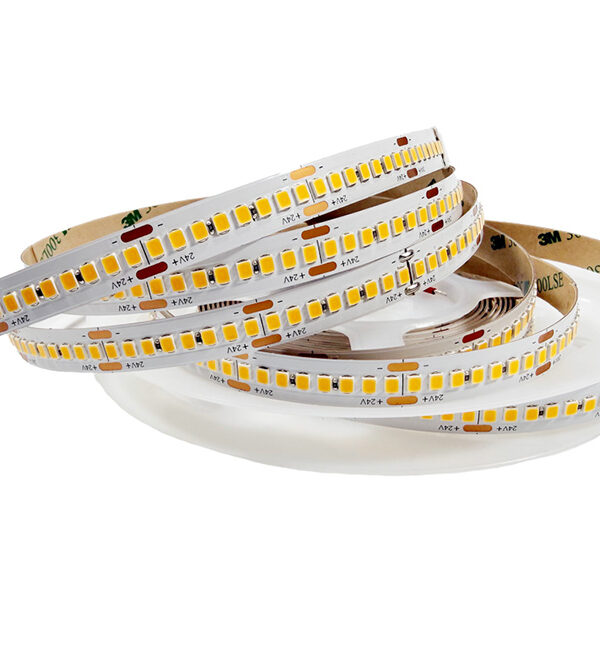

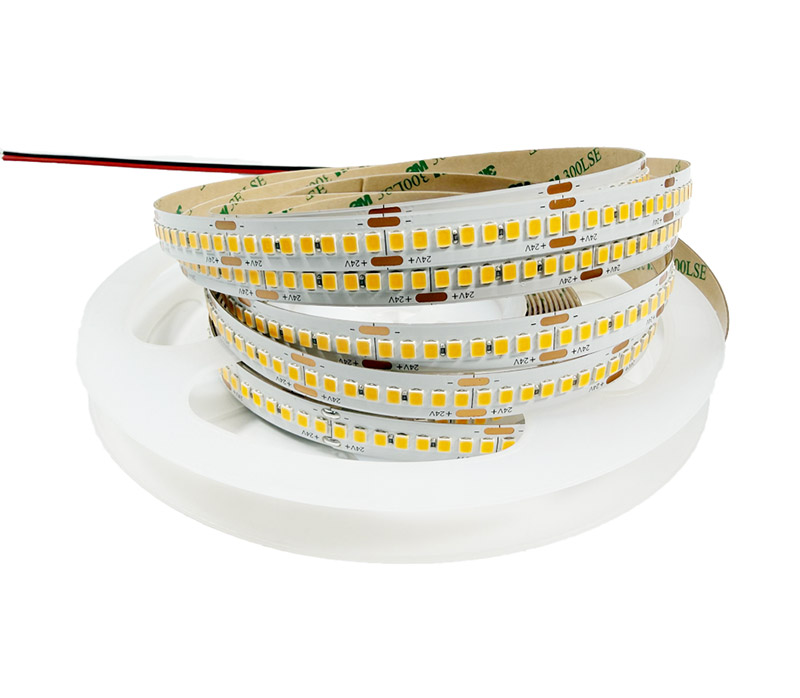

High Efficiency 160lm/W DC24V White Color 240LED 22W 10mm 2Oz PCB 3.33cm Cutting SMD2835 LED Strip
It is high efficacy flexible strip light, up to 160lm/W and make it the perfect complement to green energy projects.
It is design into 8pcs led in one group with special led and lumens output of up to 2900lm per meter, with mini CRI of 80 and 90 + is optional.

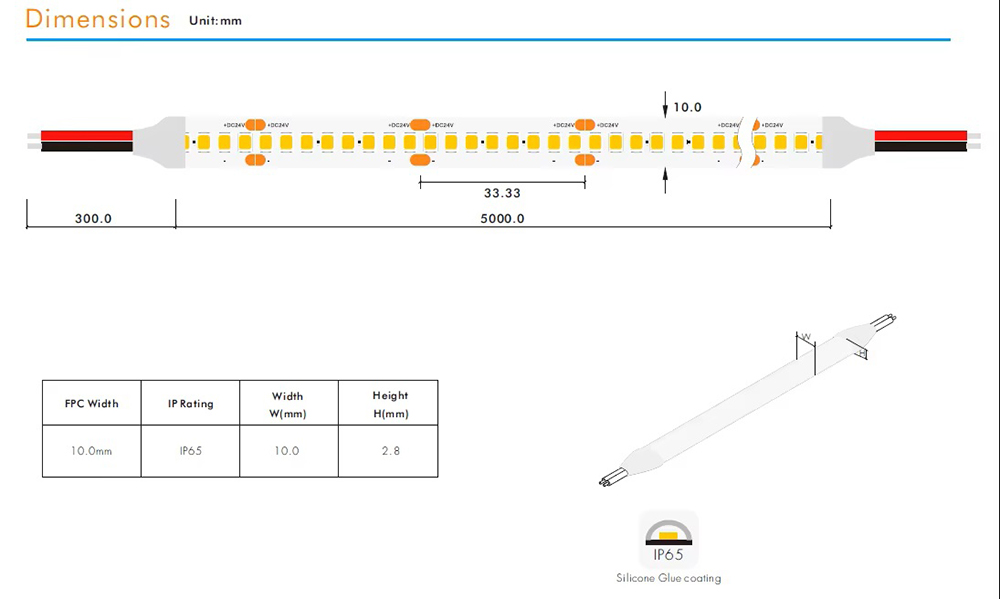

It is available in 2700K,3000K,4000K,6000K. It is completed with 3m Self-adhesive backing for easy fixing into LED channel, cut points every 33.33mm and a 3 years guarantee.
Order Information:

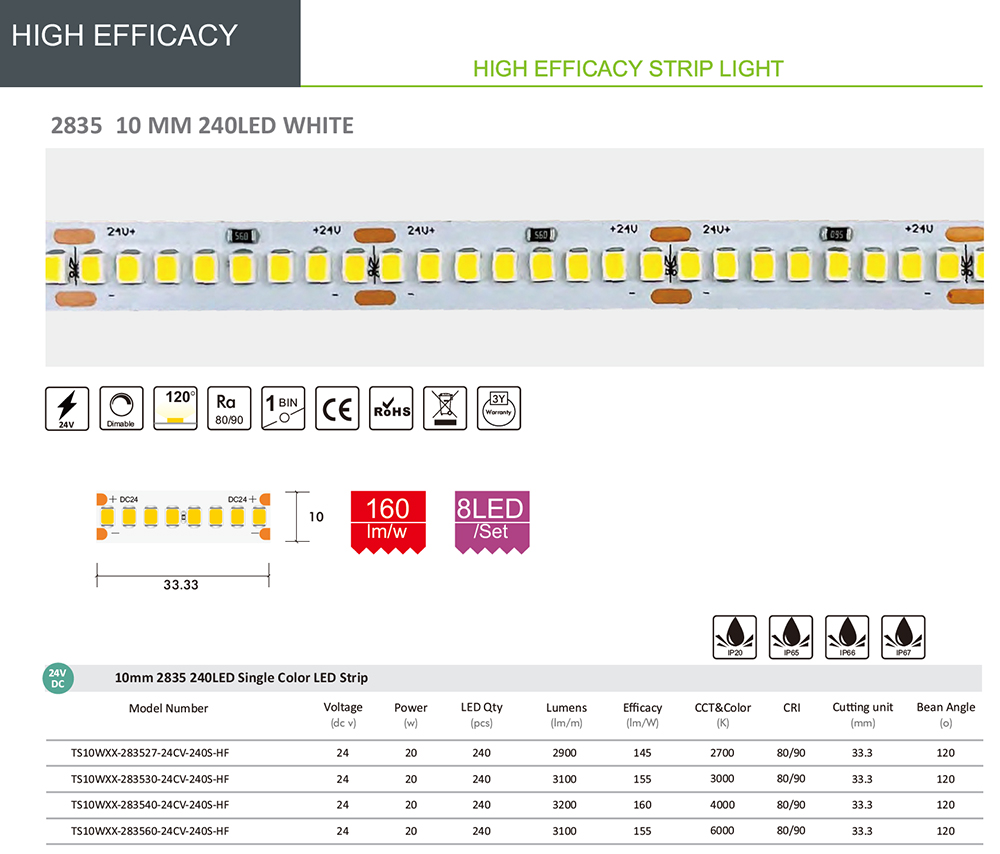

Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | CCT | Cut Unit | Lumen Output | Efficiency | Max Run |
TS10W20-283527-24CV-240S-HF-8L | 24V | 22W | SMD2835 | 240 | 10mm | 120 | 80 | 2700K | 33.3mm | 3300lm | 160lm/W | 5M |
TS10W20-283530-24CV-240S-HF-8L | 24V | 22W | SMD2835 | 240 | 10mm | 120 | 80 | 3000K | 33.3mm | 3300lm | 160lm/W | 5M |
| TS10W20-283540-24CV-240S-HF-8L | 24V | 22W | SMD2835 | 240 | 10mm | 120 | 80 | 4000K | 33.3mm | 3300lm | 160lm/W | 5M |
| TS10W20-283560-24CV-240S-HF-8L | 24V | 22W | SMD2835 | 240 | 10mm | 120 | 80 | 6000K | 33.3mm | 3300lm | 160lm/W | 5M |

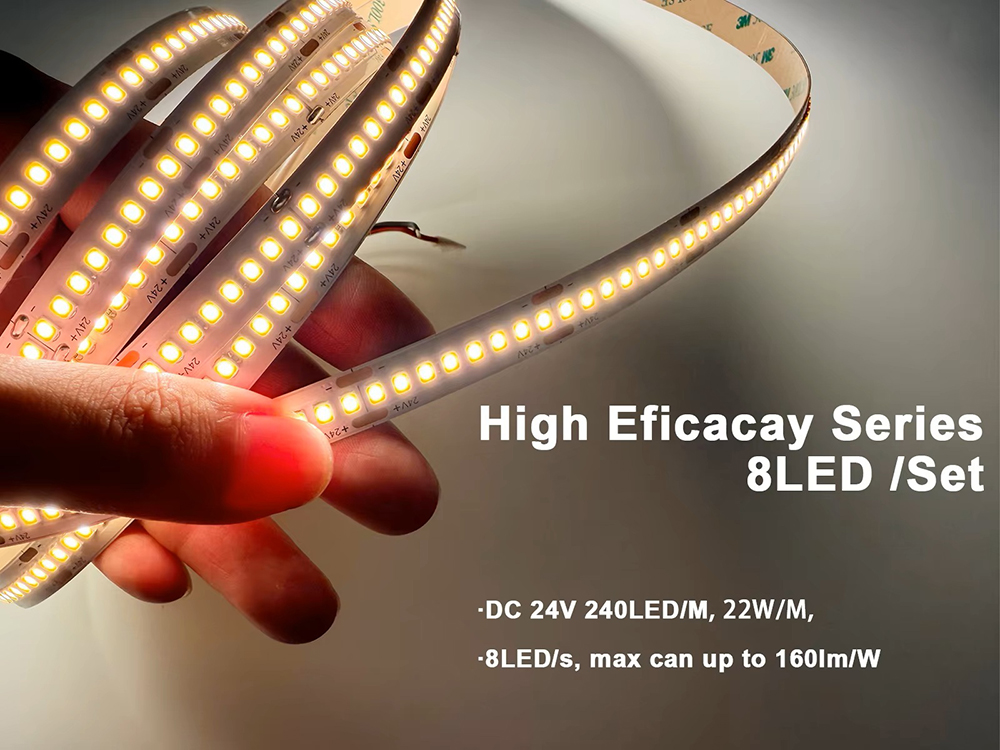

High Light Efficiency, 160lm/W, High Brightness:
Accessories:
 | Strip to Strip Connector Transparent Acrylic, 8mm PCB with 2pins, non-waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic, 8mm PCB with 4pins,150mm length wire, non-waterproof strip to wire |
 | Strip to Strip with Wire Transparent Acrylic, 8mm PCB with 2pins, 150mm wire, both ends with connector. Non-waterproof, strip to strip |
