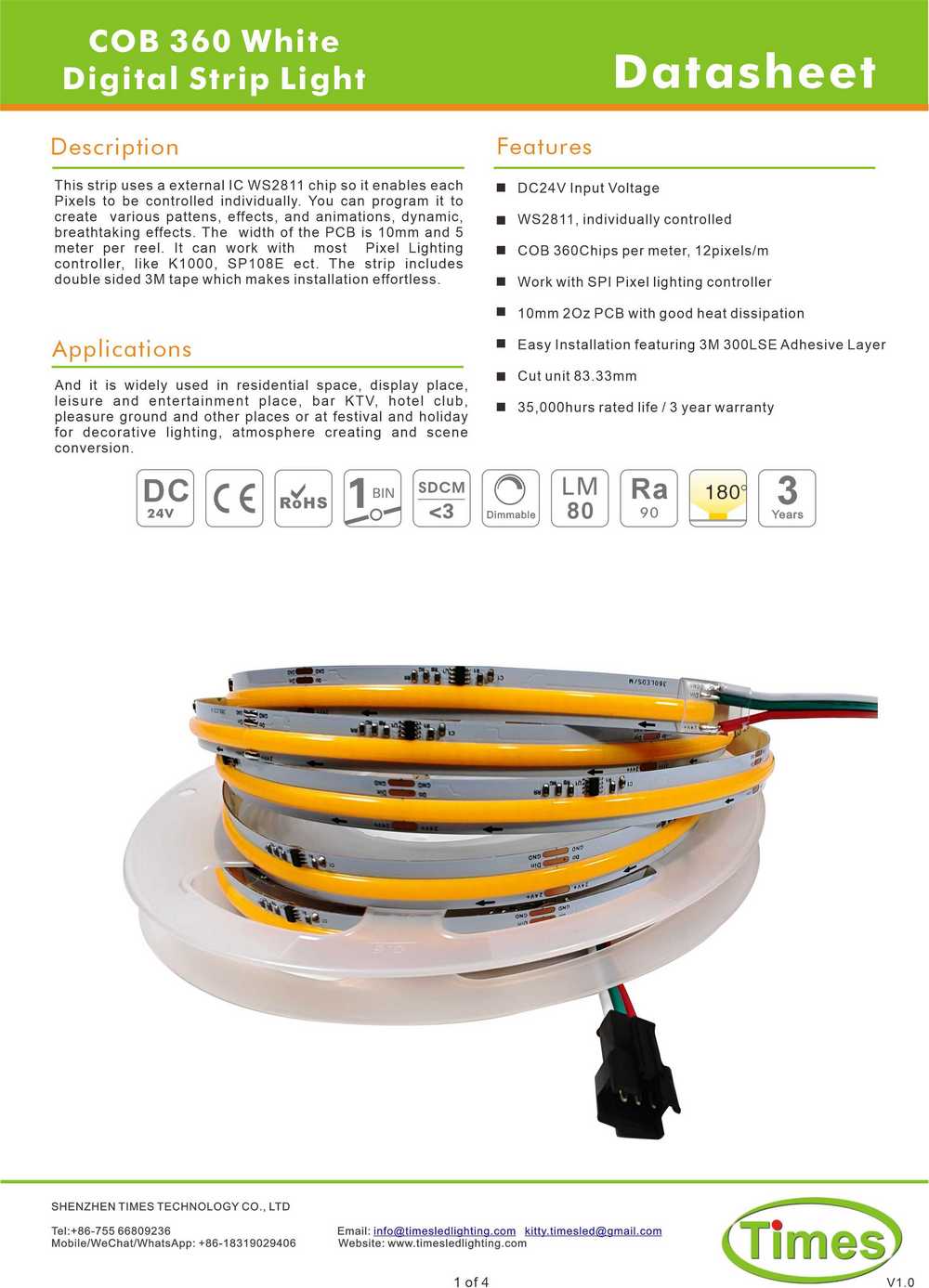

Addressable White WS2811 IC Digital 360Chips DC 24V 11W IP20 IP65 IP67 IP68 COB 2OZ 10mm Led Strip
This strip uses an external IC WS2811 chip, so it enables each pixel to be controlled individually. You can program it to create various patterns, effects, and animations, dynamic, breathtaking effects. The width of the PCB is 10mm and 5 meters per reel. It can work with most pixel lighting controllers, like K1000, SP108E, etc. The strip includes double-sided 3M tape, which makes installation effortless.
Order Information:
Model NO. | Voltage | Power/M | Pixels/M | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | Max Run |
S10WXX-FCOB27-024AD-360S-MY3-WS2811 | 24V | 11W | 144 | COB | 360 | 10mm | 120 | 90 | 2700 | 83.33mm | 440LM | 40LM/W | 5m |
S10WXX-FCOB30-024AD-360S-MY3-WS2811 | 24V | 11W | 144 | COB | 360 | 10mm | 120 | 90 | 3000 | 83.33mm | 440LM | 40LM/W | 5m |
| S10WXX-FCOB40-024AD-360S-MY3-WS2811 | 24V | 11W | 144 | COB | 360 | 10mm | 120 | 90 | 4000 | 83.33mm | 465LM | 45LM/W | 5m |
| S10WXX-FCOB60-024AD-360S-MY3-WS2811 | 24V | 11W | 144 | COB | 360 | 10mm | 120 | 90 | 6000 | 83.33mm | 465LM | 45LM/W | 5m |

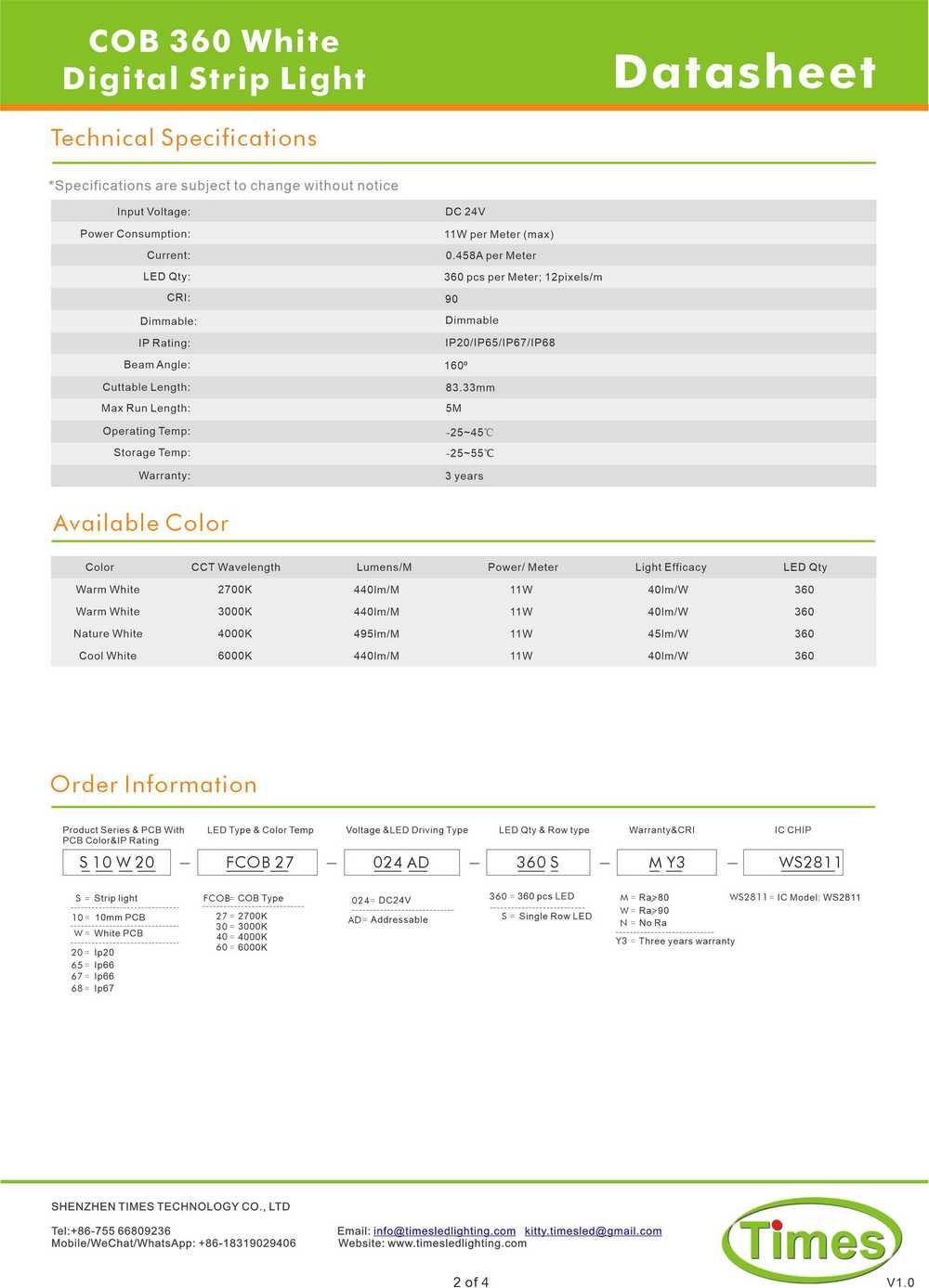

Technical Data:
