Addressable individually control RGB SK6813 IC Digital 144LED DC 12V 25W IP20 IP65 IP67 IP68 2OZ 12mm Led Strip
This strip uses a built-in IC SK6813 chip so it enables each LED of strip to be controlled individually. You can program it to creat various pattens, effects, and animations, dynamic, breathtaking effects. The width of the PCB is 12mm and 5 meter per reel. It can work with most Pixel Light controller, like K1000, SP108E ect. The strip includes double sided 3M tape which makes installation effortless.

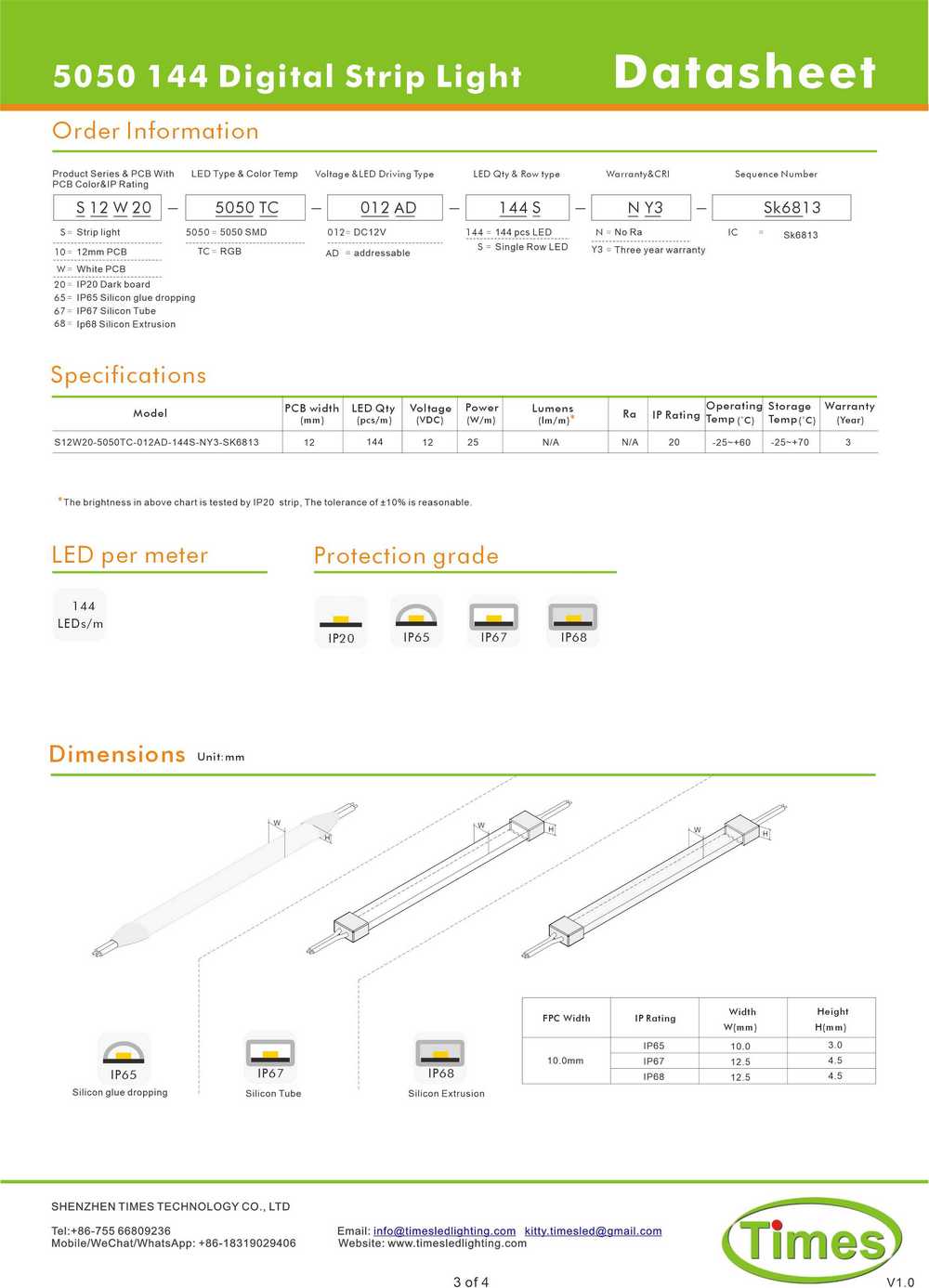

Order Information:
Model NO. | Voltage | Power/M | Pixels/M | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | Max Run |
| S12WXX-5050TC-012AD-144S-NY3-SK6813 | 12V | 25W | 144 | 5050 | 144 | 10mm | 120 | N/A | RGB | 6.94mm | N/A | N/A | 5m |
Technical Data:
Accessories:
 | Middle Connector Transparent Acrylic,10mm PCB with 4pins, non waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic,10mm PCB with 4pins,150mm length wire, non-waterproof strip to Power |
 | Strip to Strip with Wire Transparent Acrylic,10mm PCB with 4pins,150mm wire, both ends with connector. Non-waterproof, strip to strip |  | Strip to Wire Connector PVC,10mm PCB with 4pins,150mm length wire, waterproof strip to Power |
 | Middle Connector
PVC,10mm PCB with 4pins, waterproof strip to strip |
