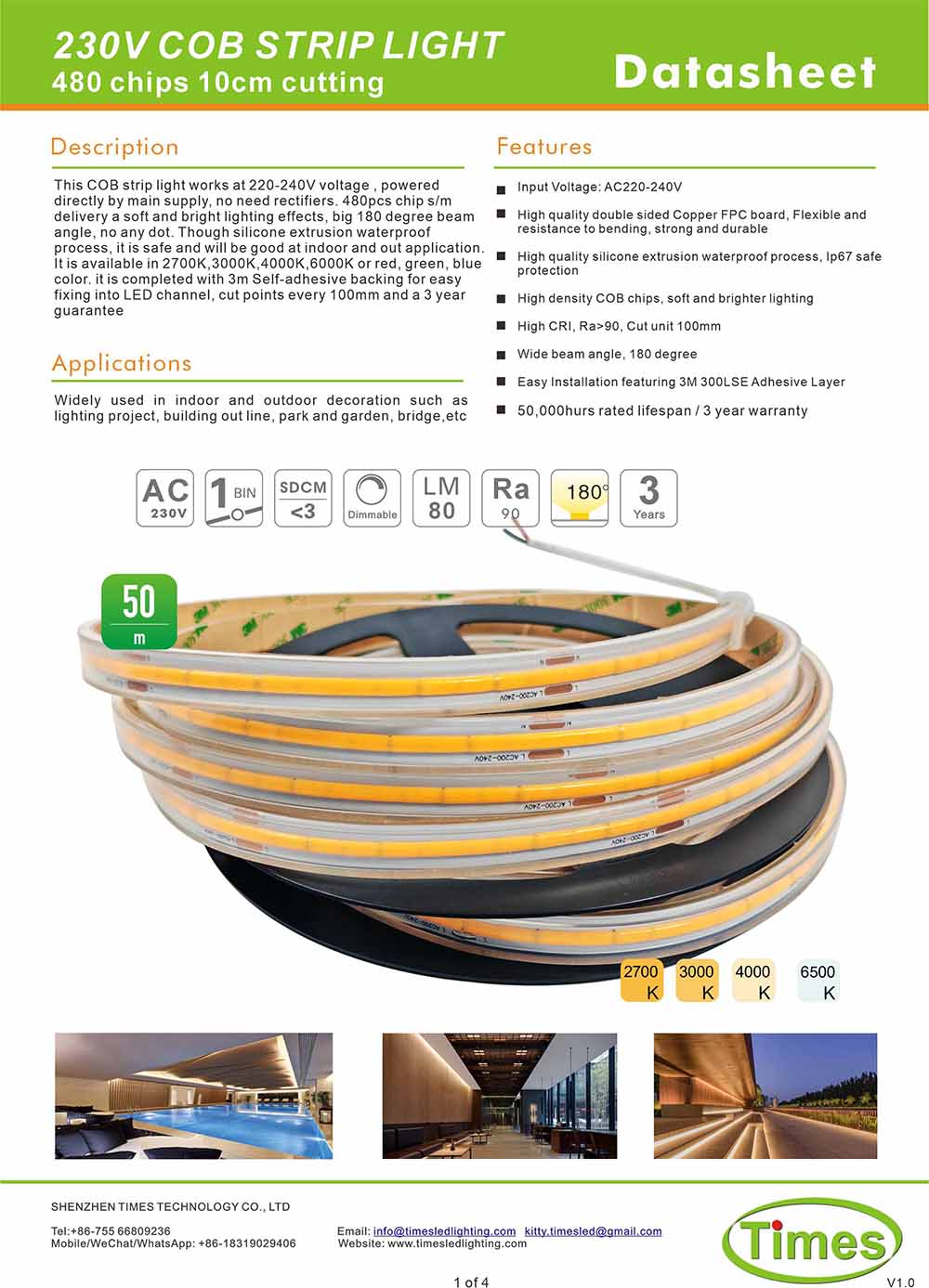

AC220V White Color COB 480Chip 12W 10mm PCB 2Oz 12W 12*4mm Silicone Extrusion LED Strip
This COB strip light works at 220-240V voltage , powered directly by main supply, no need rectifiers. Up to 480pcs chip s/m and delivery a soft and bright lighting effects, big 180 degree beam angle, no any dot. Though silicone extrusion waterproof process, it is safe and will be good at indoor and out application. It is available in 2700K,3000K,4000K,6000K or red, green, blue color. it is completed with 3m Self-adhesive backing for easy fixing into LED channel, cut points every 100mm and 3-year warranty.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | Max Run |
S10W66-FCOB27-230CV-480S-MY3 | AC220V | 12W | COB | 480 | 10mm | 180 | 90 | White | 100mm | 1080lm/m | 90lm/W | 50-100M |
S10W66-FCOB30-230CV-480S-MY3 | AC220V | 12W | COB | 480 | 10mm | 180 | 90 | White | 100mm | 1140lm/m | 95lm/W | 50-100M |
S10W66-FCOB40-230CV-480S-MY3 | AC220V | 12W | COB | 480 | 10mm | 180 | 90 | White | 100mm | 1200lm/m | 100lm/W | 50-100M |
| S10W66-FCOB60-230CV-480S-MY3 | AC220V | 12W | COB | 480 | 10mm | 180 | 90 | White | 100mm | 1200lm/m | 100lm/W | 50-100M |
Technical Data:
Accessories:
 | Strip to Strip Connector Middle connector with wire for LED strip light 10mm PCB
|  | Strip to Strip Connector Middle connector without wire for LED strip light 10mm PCB
|
 | Strip to Wire Connector Front connector for LED strip light 10mm PCB |  | Clip and screw Clip with screw for LED strip light |
 | End Cap End cap for LED stirp light 10mm PCB |
