Mini Cut DC24V White Color SMD2835 168-LED 16.8W 10mm 2Oz PCB 11.9mm Cutting LED Strip Light

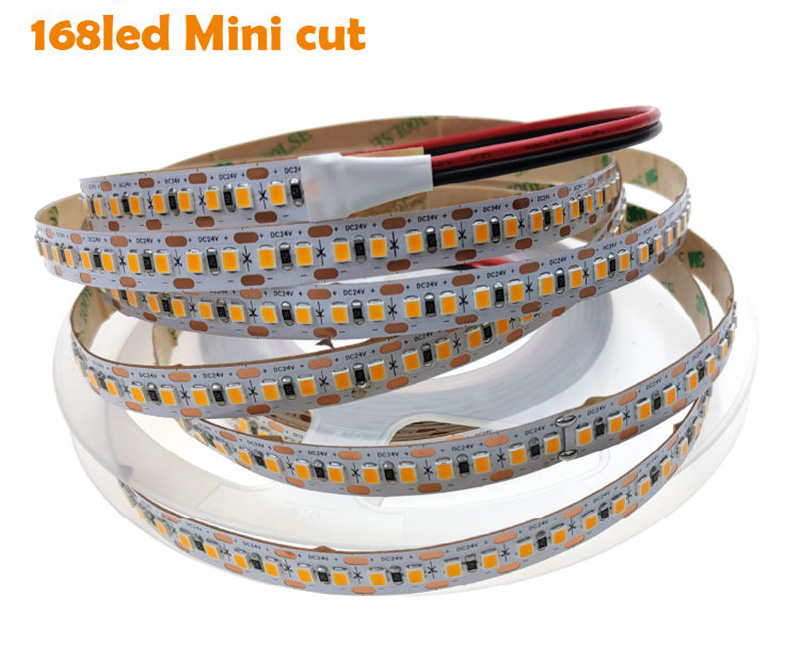

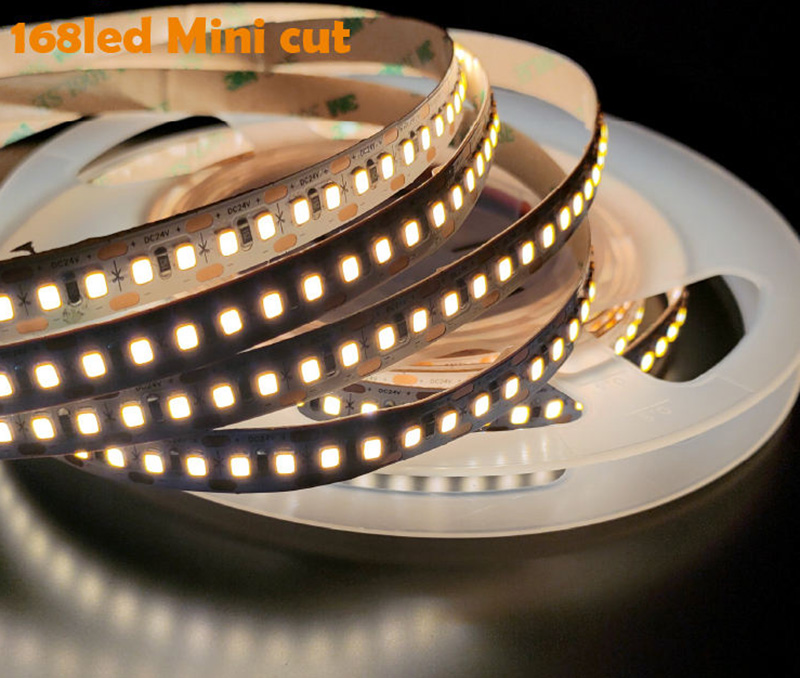

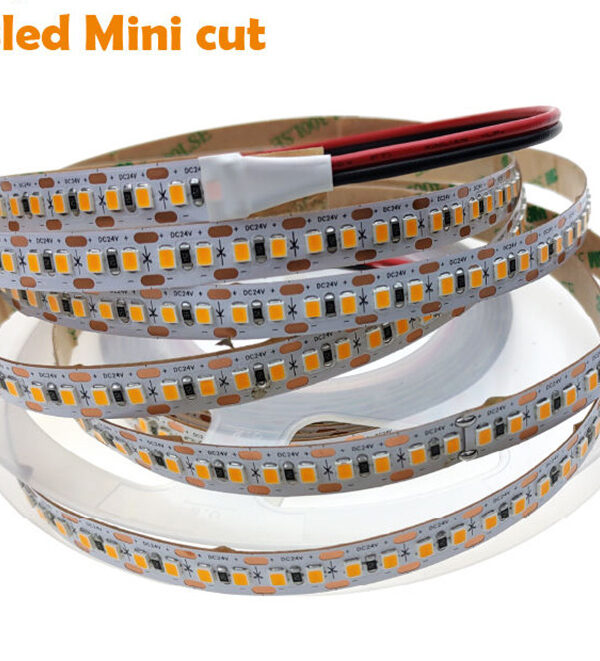

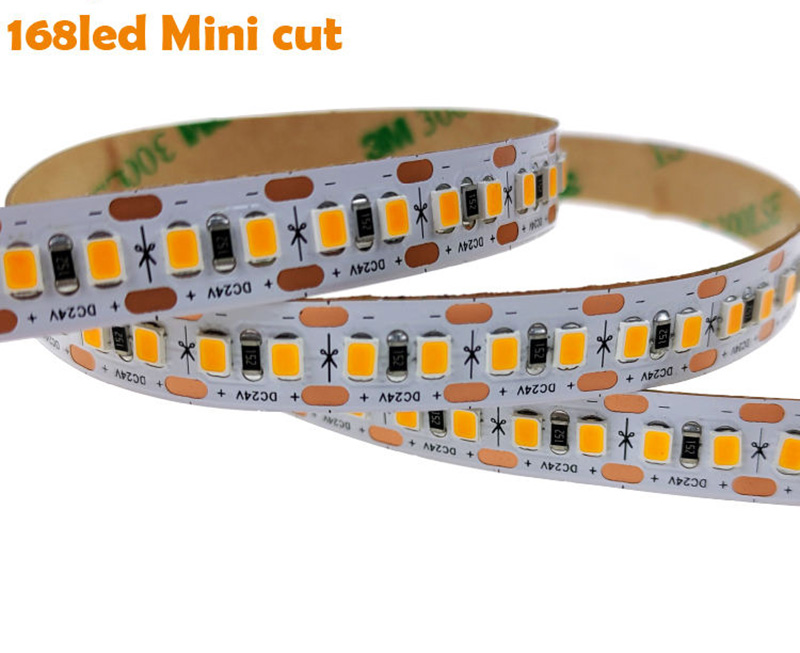

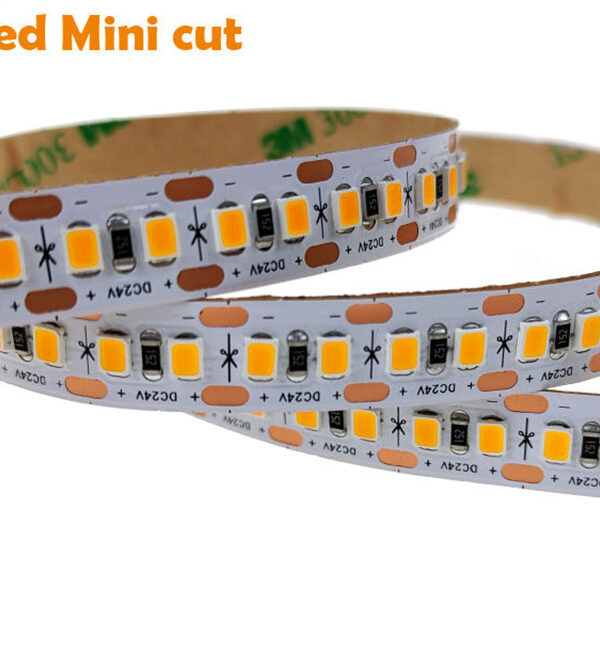

This strip is equipped with 2835 LED chips, featuring 168 LEDs grouped in sets of 2. Operating on DC 24V with a power consumption of 16.8W, it achieves 1550lm/m. 19.9mm per cutting.
It comes with double-sided 3M tape, ensuring effortless installation. With a variety of color temperatures available, ranging from 2700K to 6000K and covering all intermediate color temperatures, it is designed to create elegant lighting tailored for different application scenarios.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | Color | Cut Unit | Lumen Output | Efficiency | Max Run |
TS08WXX-283527-24CV-168S-MC2 | DC24V | 16.8W | 2835 | 168 | 10mm | 120 | 80 | 2700K | 11.9mm | 1500lm/W | 90lm/W | 5M |
TS08WXX-283530-24CV-168S-MC2 | DC24V | 16.8W | 2835 | 168 | 10mm | 120 | 80 | 3000K | 11.9mm | 1500lm/W | 90lm/W | 5M |
| TS08WXX-283540-24CV-168S-MC2 | DC24V | 16.8W | 2835 | 168 | 10mm | 120 | 80 | 4000K | 11.9mm | 1500lm/W | 90lm/W | 5M |
| TS08WXX-283560-24CV-168S-MC2 | DC24V | 16.8W | 2835 | 168 | 10mm | 120 | 80 | 6000K | 11.9mm | 1500lm/W | 90lm/W | 5M |
Technical Data:
Accessories:
 | Strip to Strip Connector Transparent Acrylic, 8mm PCB with 2pins, non-waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic, 8mm PCB with 4pins,150mm length wire, non-waterproof strip to wire |
 | Strip to Strip with Wire Transparent Acrylic, 8mm PCB with 2pins, 150mm wire, both ends with connector. Non-waterproof, strip to strip |
