High Efficacy 125lm/W DC 24V White Color 2216 210LED 8.6W 5mm PCB 2Oz 33.33mm Cutting IP20

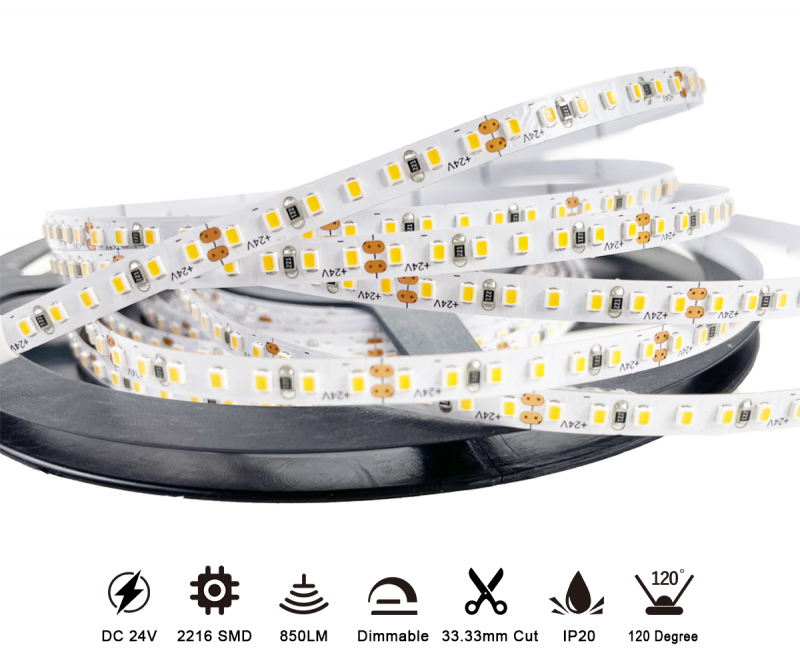

It is 5mm slim flexible strip light with 2216 210pcs SMD. It is designed into 7LEDs per group, 20% high brightness than common market strip light, High CRI with Ra>90 will provide a cost effective high standard LED lighting solution and make it the perfect complement to green energy projects. The lumens output is up to 850lm per meter. It is available in 2700K,3000K,4000K,6000K. it is completed with 3m Self-adhesive backing for easy fixing into LED channel, cut points every 33.33mm and a 3 years warranty.
Order Information:
Model NO. | Voltage | Power | LED Type | LED Qty | PCB Width | Beam Angle | CRI | CCT | Cut Unit | Lumen Output | Efficiency | Max Run |
S05W20-221627-024CV-210S-MY3 | 24V | 8.6W | SMD2216 | 210 | 5mm | 120 | 80 | 2700K | 33.33mm | 688lm | 80lm/W | 5M |
S05W20-221630-024CV-210S-MY3 | 24V | 8.6W | SMD2216 | 210 | 5mm | 120 | 80 | 3000K | 33.33mm | 688lm | 80lm/W | 5M |
| S05W20-221640-024CV-210S-MY3 | 24V | 8.6W | SMD2216 | 210 | 5mm | 120 | 80 | 4000K | 33.33mm | 817lm | 95lm/W | 5M |
| S05W20-221660-024CV-210S-MY3 | 24V | 8.6W | SMD2216 | 210 | 5mm | 120 | 80 | 6000K | 33.33mm | 817lm | 95lm/W | 5M |
Technical Data:
Accessories:
 | Strip to Strip Connector Transparent Acrylic, 5mm PCB with 2pins, non-waterproof, strip to strip |  | Strip to Wire Connector Transparent Acrylic, 5mm PCB with 4pins,150mm length wire, non-waterproof strip to wire |
 | Strip to Strip with Wire Transparent Acrylic, 5mm PCB with 2pins, 150mm wire, both ends with connector. Non-waterproof, strip to strip |
