Specifications:

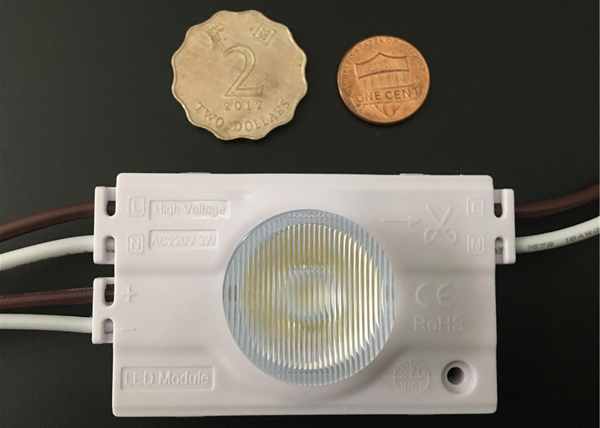

Item NO. | MAP501 |
Light Source | Customized SMD4040 LED |
Beam Angle | 12x50deg |
CCT | Pure White, Cool White |
Input Voltage(V) | AC220-264V (AC110V for choice) |
Rated Power(W) | 3W |
Lumen Output | 255lm |
IP Rate | IP67 Waterproof |
Qty./String | 20pcs Standard |
Cuttable | Cuttable per 2pcs |
Working Temperature(℃) | -20 – +45 |
Lifespan (Hour) | >50,000 |
Dimensions(mm) | 75x45x19.6mm |
Type | Edge-lit |
Brand Name | TIMES |
Housing Material | ABS from SABIC |
Warranty Period | 5 Years |
Product Features:
1, Adopt high quality LED as light source,high brightness,uniform lighting,good Antistatic;
2, AC200-AC264V 50Hz/60Hz input; P.F>0.9;
3, Nice design with 12*50°optical lens;
4, Circuit design with constant current, over-temperature and short circuit protection function;
5, Use fire-resistant material, fireproof up to U94V-0 and waterproof up to IP67;
6, No need power supply; no wiring loss; no voltage-dropping; single cuttable; easy installation;
Dimensions:
Light Distribution:
Solution:
Notes:
- The example channel letter with 3.00mm acrylic plate and light transmittance of 54%.
- Above data is just for reference.
*** Installation with Aluminum Bar (Aluminum Bar NOT Included):
Package:
20pcs Modules per Inner Blister Package;
200pcs Modules per Master Carton (10 Blister Package / CTN)
Applications:
Suitable for Indoor & Outdoor Signage or Lighting Box, Edge-lit Type.
